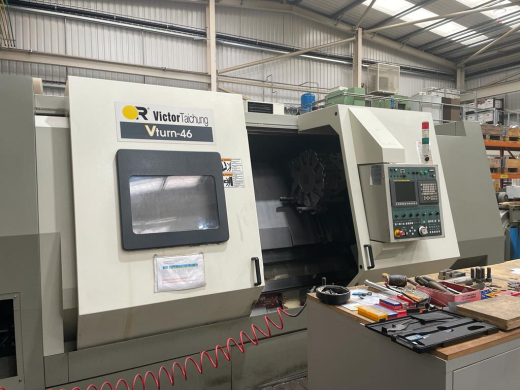

VICTOR Vturn 46 CNC Lathe with Fanuc 0i-TD Control. Year 2012

Photo 1

Photo 2

Photo 3

Photo 4

Swing over bed 730mm. Swing over carriage 520mm. Standard turning dia. 320mm. Distance between centres 1750mm. Maximum X travel 25mm + 365mm. Maximum Z travel 1650mm. Rapids X/Z 12/15m/min. Maximum spindle speed 1500 rpm (4 step gearbox). Spindle nose A2-11. Spindle bore 123mm. Spindle bore through draw tube 110mm. Main motor 30/37 kW. Tailstock quill dia. 150mm. Quill stroke 150mm. Quill taper 5 MT. High Pressure Coolant. Coolant capacity 250 litres. Machine fitted with Kitagawa B21 Powered Chuck (21? dia). 3 point roller steady 150mm – 300mm capacity. Fanuc 0i-TD Control. Tool setter. Oil skimmer

Dimensions L x W x H 6210mm x 2980mm x 2515mm. Approximate weight 13,500 kgs

Category: Lathes - CNC

Seller's location: Lancs, UK
