VICTOR Vturn II-36 CNC Lathe with Fanuc 0i-TB Control. Year 2003

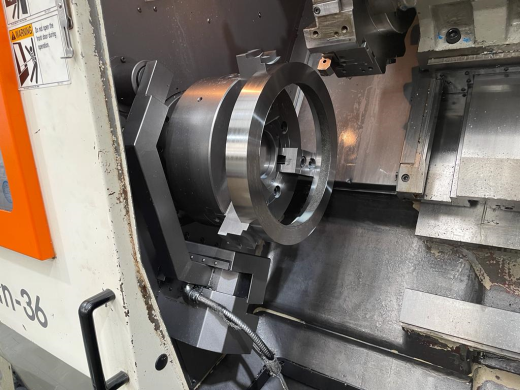

Photo 1

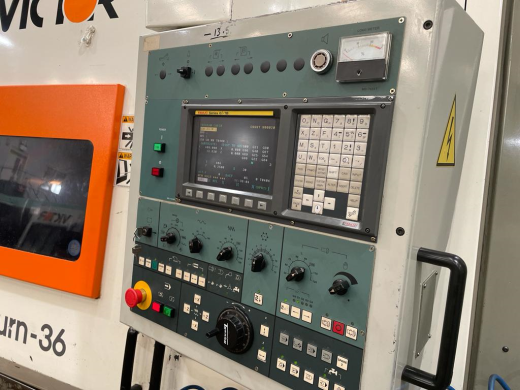

Photo 2

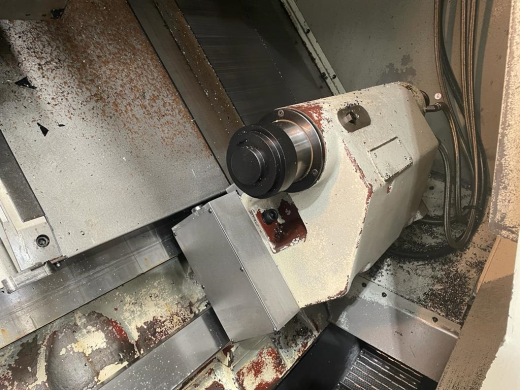

Photo 3

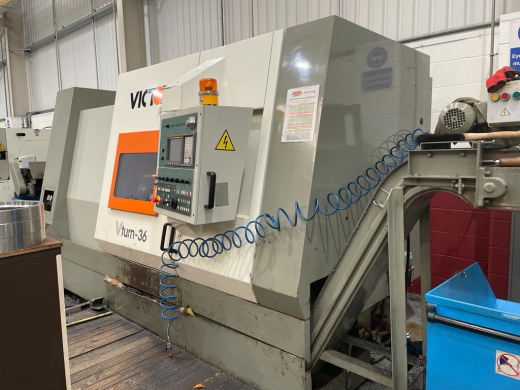

Photo 4

Swing over bed 680mm. Swing over carriage 475mm. Standard turning dia. 320mm. Maximum turning dia. 550mm. Distance between centres 890mm. Maximum X travel 30mm + 275mm. Maximum Z travel 855mm. Rapids X/Z 12/15m/min. Maximum spindle speed 2500 rpm. Spindle nose A2-8. Spindle bore 105mm. Spindle bore through draw tube 90mm. Main motor 22/26 kW. 10 station turret. Tailstock quill dia. 110mm. Quill stroke 100mm. Quill taper 4 MT. High Pressure Coolant. Coolant capacity 130 litres. Machine fitted with Kitagawa B15 Powered Chuck (15? dia). Fanuc 0i-TB Control. Tool setter.

Dimensions L x W x H 4710mm x 1985mm x 2205mm. Approximate weight 8500 kgs

Category: Lathes - CNC

Seller's location: Lancs, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 11 Jan 2022
