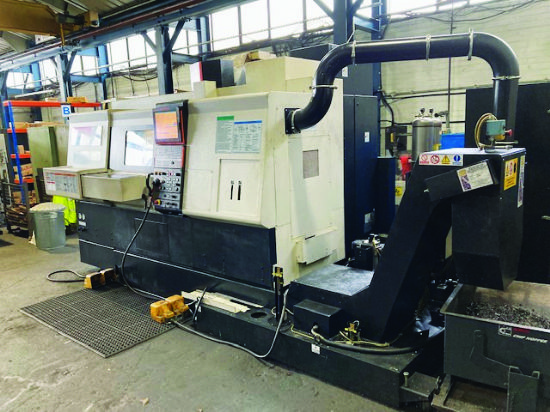

2010 MAZAK Integrex 100-IV ST CNC Mill/Turn Lathe

Photo 1

Photo 2

Photo 3

Photo 4

Mazatrol Matrix control, Iemca Master 865 Mp bar feed type 19, main spindle Kitagawa 170mm dia, 3-jaw power chuck, sub-
spindle Kitagawa B206 3-jaw power chuck, max swing 545mm, max swing over cross slide 545mm, swing during Y-axis
process 412-545mm, max
machining dia 412mm milling head, 400mm dia lower turret, max bar work capacity main & sub-spindle 51mm dia, max machining length 753mm, main spindle speed range 35-6,000rpm (11kW motor), spindle bore 61mm, sub-spindle speed range 35-6,000rpm (11kW motor), spindle bore 61mm,
milling head speed range 15-12,000rpm (5.5kW motor),
90° indexing time 0.5s,
spindle taper Capto C6,
tool size 20 x 20mm,
9 faced drum lower turret,
9-stations,
tool shank 20 x 20mm,
axis travels: X=410, Y=140, Z=805mm, B=225°, X2=220, Z2=780, W=795mm,
40-station ATC

Category: Lathes - CNC

Seller's location: Surrey, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 8 Aug 2023
