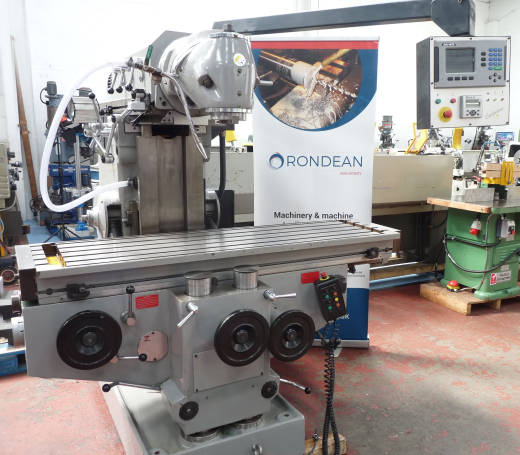

Europa Centurion CU5 Universal Milling Machine with Acu-rite CNC control

Photo 1

Photo 2

Photo 3

Photo 4

Manufacturer
Centurion, Europa

Model
CU5 Heavy Duty Ram Type Universal Milling Machine with Acu-rite CNC control

Features
Huron Type Head that Rotates 360 degrees
Power Feed and Rapids in All Directions
Dual Handwheels Allow The Machine To Be Operated From Either Side Of The Knee
Portable Hand Control
Coolant

Spindle
50 International

Capacity
1635 x 460mm Table
1800kg Maximum table load

Longitudinal Travel
1300mm

Cross Travel (Ram)
700mm

Vertical Travel (knee)
500mm

Min spindle nose to table
40mm

Speeds
27: 30 – 2050 revolutions per minute

Equipment
Machine Vice
LVL

Safety
table guard

Spindle Motor
7.5 kW 10HP

Power
Three Phase Electric's 415v 50hz 32amps

Approx Dimensions
2010 x 2620 x 1950 mm 3500 kg

Safe lifting and handling
We supply lifting and moving instructions. We also loan our specialist lifting equipment where required.

Delivery Options
To suit your needs, call us for a quote.


Category: Milling

Seller's location: Co Durham, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 24 Jan 2024
