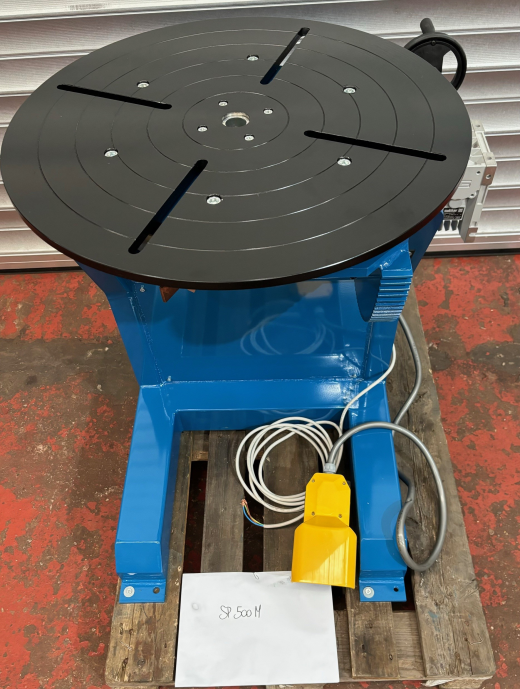

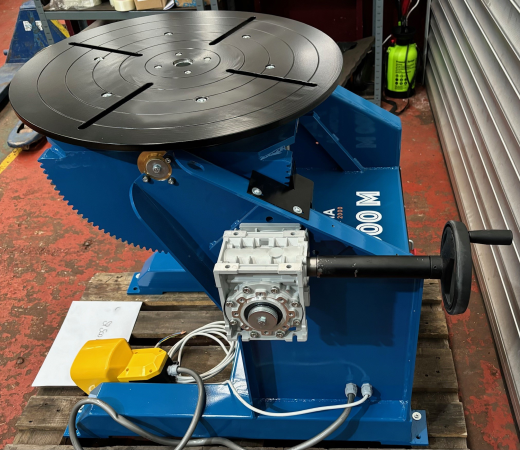

500 Kgs Welding Positioner

Photo 1

Photo 2

Photo 3

Photo 4

1 Model SP500M
2 Capacity (Turning) 500Kgs
3 Capacity (Tilting) 500Kgs

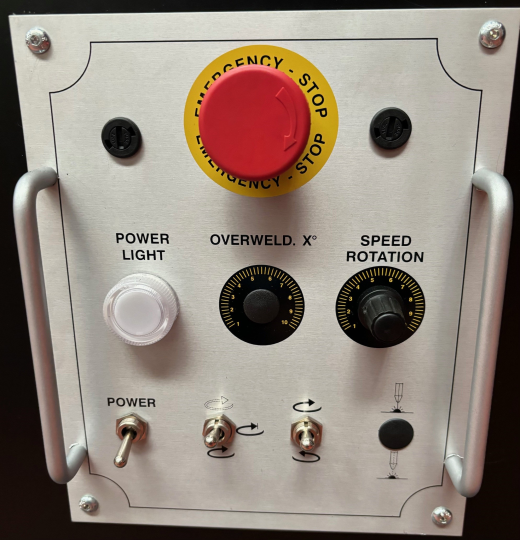

4 Electrical Panel Integrated
5 Rotation Speed 0.3 -3
6 Tilt Range 110 Degrees
7 Incoming Supply 240 Volt
8 Control Voltage 24 Volt
9 Rotation Drive Control Variable via a potentiometer . Inverter
10 Control Means FWD/RVRS/Stop
11 Tilt Speed Manual
12 Tilt Drive Motor Manual
13 Earthing
14 Surface Preparation Griblast to SA2.5
15 Painting Spray Painting
16 Color Blue
17 Weight 230Kgs
18 Dimensions 800mm L x 650mm W x 835mm H
19 Table Diameter 650mm


Category: Welding and Cutting Machinery

Seller's location: West Midlands, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 26 Oct 2023
