CORREA FP40/50 - 8920106 CNC Milling machine - Bridge type

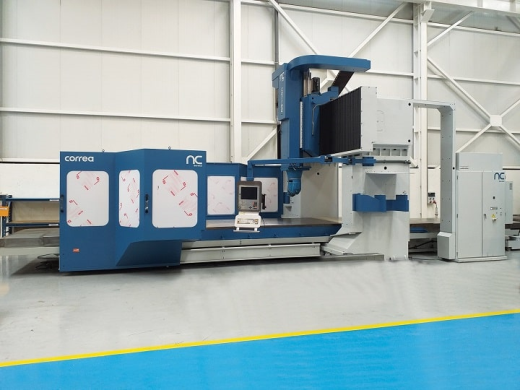

Photo 1

Photo 2

Photo 3

Photo 4

Control: HEIDENHAIN TNC-320
Year: 1997

• Table dimensions: 5000 x 2000 mm
• Number of T slots: 13
• T slots dimensions: 22 mm

• X axis traverse: 5000 mm
• Y axis traverse: 3200 mm
• Distance between columns: 2500 mm
• Z axis traverse: 1000 mm

• Head 1: Elongate
• Head 2: Universal manual
• Tool clamping system: Hydraulic
• Taper nose: ISO 50 (DIN-69871)    /    Tirante: DIN-69872
• Speed range: 5.000 rpm with direct exit option, limited to 3000 with milling head
• Spindle power: 37 kW

• Feedrate: 2 - 5.000 mm/min
• Rapid feedrate: X = 7.500 mm/min    /     Y-Z = 12.000 mm/min

• Maximum weight on table: 25000 Kg
• Machine weight approximate: 45000 Kg
• Machine dimensions approximate: 12700 x 5030 x 5150 mm

• Guarding
• External coolant
• Electronic handwheel: HR-550
• Manual changing heads system, with lateral hinge/support
