XYZ 750 LR Vertical Machining Centre (3 Axis) #78752

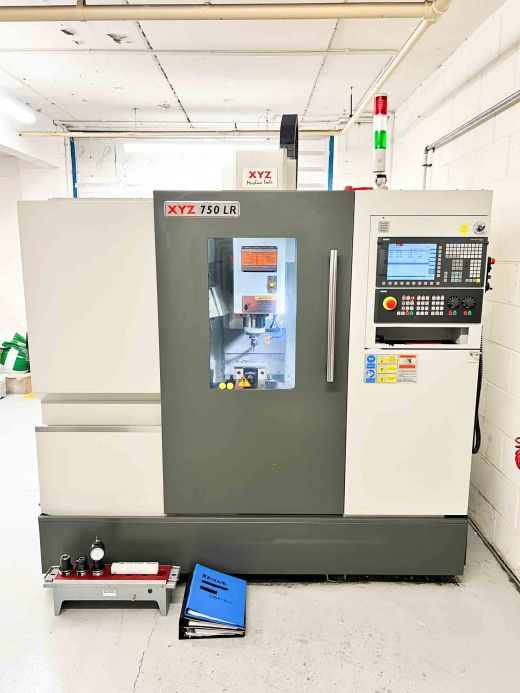

Photo 1

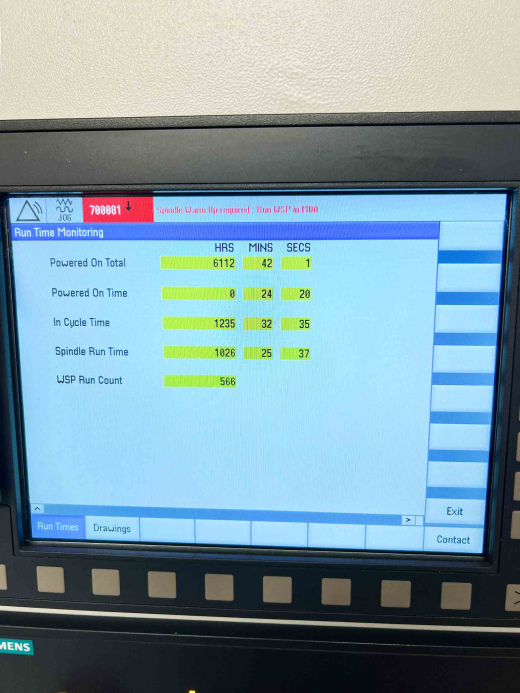

Photo 2

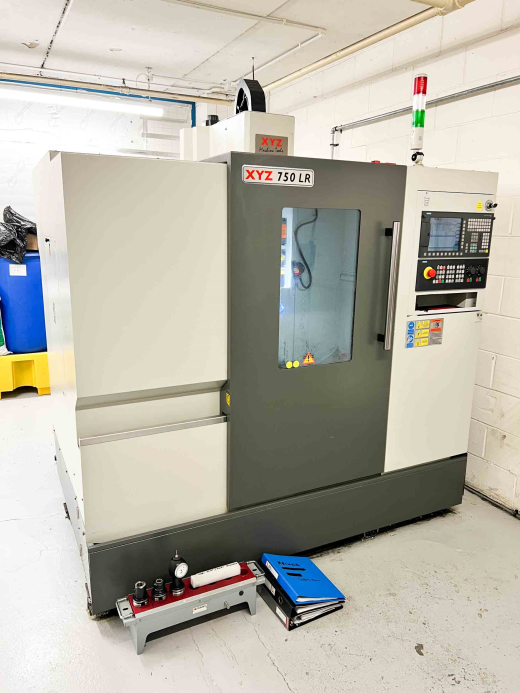

Photo 3

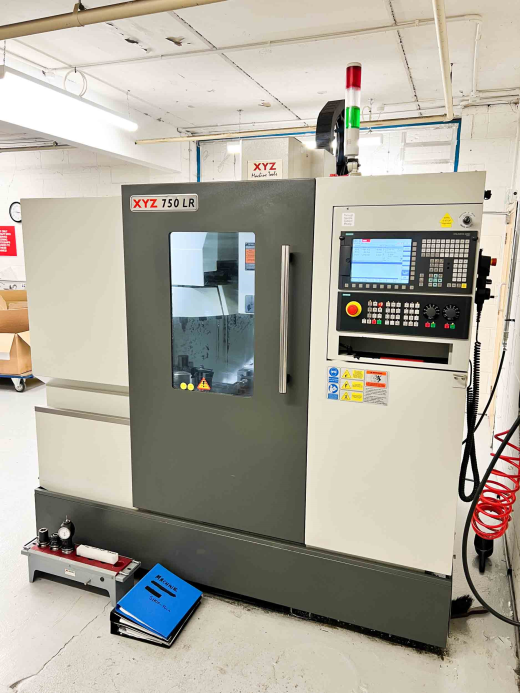

Photo 4

XYZ 750 LR Vertical Machining Centre (3 Axis)
Siemens 828D Control
Manufactured & Installed in 2020

Working Table:
Working Area 830 x 410mm
T Slot Size 3 x 16 x 100mm
Maximum Table Load Capacity 500Kgs

Machine Stroke:
X Axis Travel 750mm
Y Axis Travel 440mm
Z Axis Travel 500mm
Distance from spindle nose to working surface table 100 – 600mm
Distance from spindle centre to main column 500mm

Spindle:
Spindle Taper BT40
Bearing Dia’ Ø60mm
Spindle Speeds to 8,000rev/min

Feeds:
Rapids 20m/min
Cutting Feed Rates (XYZ) 1 – 20,000mm/min
Linear Rail Slideways

Tool Magazine:
Capacity 20 Carousel
Max’ Tool Weight 7Kgs
Tool Change Time (T-T) 8 Secs

Drive Motor:
Spindle Drive Motor 10HP
Coolant 1/4HP
Chip Wash 1/4HP

General:
Door Opening Width: 880mm
Overall Dims: 2100 x 2100 x 2655mm
Gross Weight: 3500Kgs

Supplied with:
Siemens 828D Control
Renishaw Tool Setting & Probing
Remote Electronic Control Handwheel
Optimised Digital Servos
Rigid Tapping
Flood Coolant
Worklight
20 Station Carousel
Easy Clean Swarf Tray
Steel Concertina Guards on all Axis
Power Coating Guarding
USB Port
Compact Flash Drive Card Slot

www.jetmachinery.co.uk
Jet Machinery Stock No: #78752
Machine Serial Number: STP20168
Cost: £34,950.00 + VAT

Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details.

Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.


Category: Milling

Seller's location: West Midlands, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 14 Mar 2024
