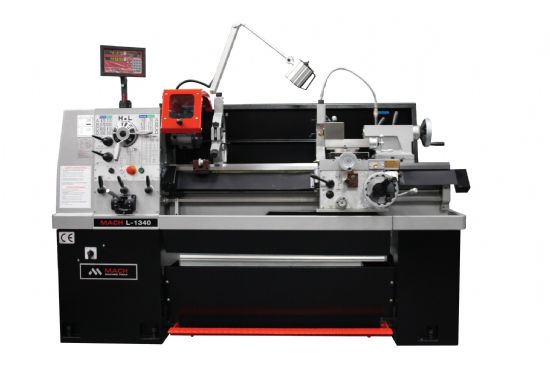

MACH L1340 Manual Lathe

Photo 1

Photo 2

Photo 3

Photo 4

MACHINE SPECIFICATIONS MACH L-1340 CAPACITY Centre height: 171 mm Swing over bed: 342 mm Dia Swing in gap: 512 mm Swing over cross slide: 205 mm Dia Distance between centres: 1000 mm Width of bed: 230 mm Length of gap in front of face plate: 150 mm HEADSTOCK & MAIN SPINDLE Spindle nose: D1-4 x MT No 5 Spindle bore: 40 mm Spindle speeds: 16 Step/8 ranges 50-2570 rpm CARRIAGE Carriage length: 400 mm Cross slide travel: 180 mm Compound slide travel: 100 mm THREADS & FEEDS Whitworth threads: x 45/2-72 TPI Metric threads: x 39/0.2-14 mm DP threads: x 21/8-44 DP MP threads: x 18/0.3-3.5 MP Longitudinal feeds: 0.05-1.7 mm Cross feeds: 0.025-0.85 mm TAILSTOCK Tailstock quill dia: 50 mm Quill travel: 112 mm Quill taper: MT No 3 MOTOR Motor: 2.2 kW (5HP) AC type Coolant pump: 0.25 HP MEASUREMENTS Weight: 1200 kg 1450 kg Size L x W x H: 2270 x 965 x 1900 mm EQUIPMENT Fixed and travelling steady; face plate; 3 and/or 4 jaw INCLUDED scroll chucks; Quick-change tool post; Newall DP 500 Digital-read out control OPTIONS AVAILABLE 5C Collet Adaptor; Newall DP 700 Digital-read out control; Taper turning attachment; Live centre MT No 4

Category: Lathes - general

Seller's location: Bristol, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 12 Feb 2021
