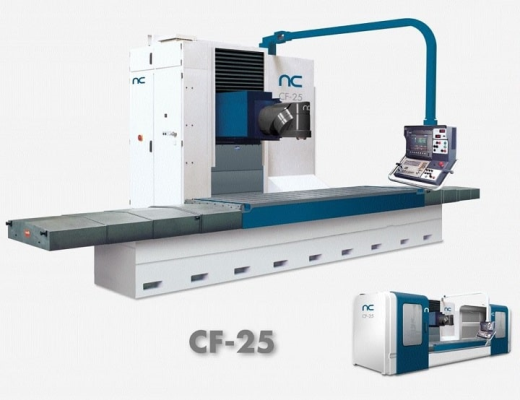

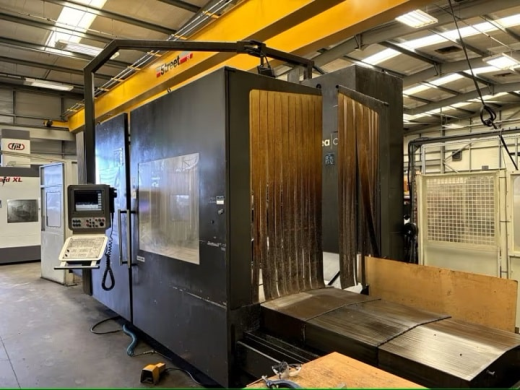

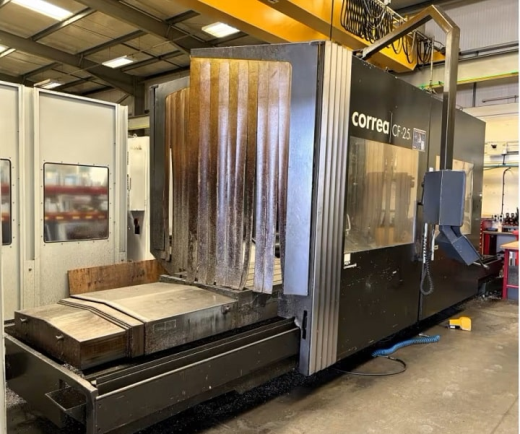

CORREA CF25/25 - 625064 CNC Milling machine - Bed type

Photo 1

Photo 2

Photo 3

Photo 4

Control: HEIDENHAIN TNC-530
Year: 2008

• Table dimensions: 2800 x 1000 mm
• Number of T slots: 5
• T slots dimensions: 22 mm

• X axis traverse: 2500 mm
• Y axis traverse: 1000 mm
• Z axis traverse: 1500 mm

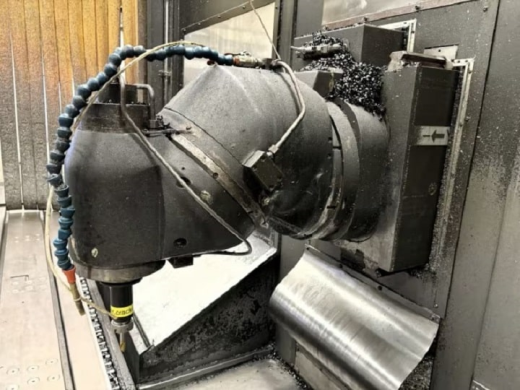

• Head type: Auto-indexing head UDG (every 2,5º)
• Tool clamping system: Hydraulic
• Taper nose: ISO 50 (DIN 69871)   /   Pull stud: DIN 69872
• Speed range: 3000 rpm
• Spindle power: 22 kW

• Feedrates: 5000 mm/min
• Rapid feedrates (X-Y-Z): 20000 mm/min

• Maximum weight on table: 6000 kg
• Machine weight approx.: 20000 kg
• Machine dimensions approx.: 7750 x 4400 x 3100 mm

• Guarding
• New automatic tool changer: ATC-30
• Longitudinal rear chip conveyor
• Electronic handwheel: HR-410
• External coolant and high pressure through spindle
