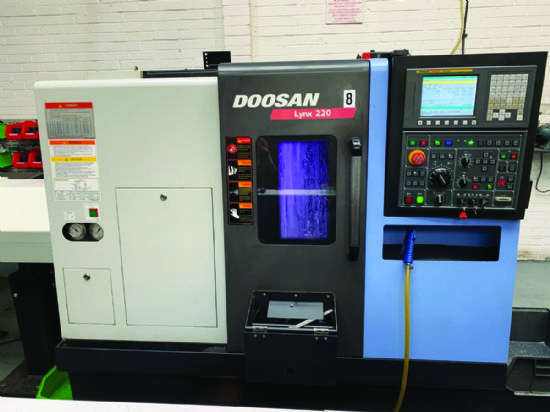

2013 DOOSAN Lynx 220B

Photo 1

Photo 2

Photo 3

Photo 4

Bar capacity 51mm,
chuck size 200mm,
Fanuc OI-Series control,
machine dimensions L x D x H: 2,327 x 1,620 x 1,655mm,
machine weight 2,900kg,
max cutting dia 320mm,
max cutting length 305mm,
rapid feedrates X/Z: 30 x 36m/min,
spindle motor power 11kW,
spindle nose A2-6,
spindle speed 5,000rpm,
swing 510mm,
swing over carriage 290mm,
tailstock quill diameter 65mm,
tailstock quill stroke 80mm,
tailstock taper MT #4,
tool size 25 x 25mm,
12-station turret,
X-axis travel 175mm,
Z-axis travel 330mm,
tool setter,
tailstock,
interlocked guards,
low-volt light,
magazine bar feed,
parts catcher,
manuals

Category: Lathes - CNC

Seller's location: Coventry, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 31 Dec 2021
