2016 Matsuura H.Plus-630 / G-Tech 31i Control

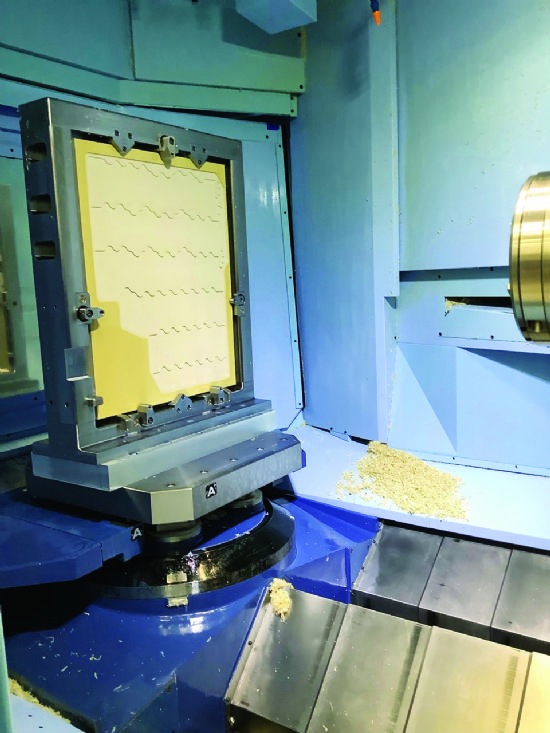

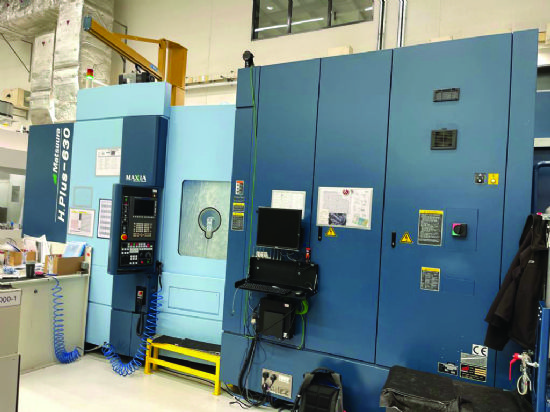

Photo 1

Photo 2

Photo 3

Photo 4

Used only on plastic.
12,000 rpm, BT50, Big Plus spindle,
full B-axis,
630mm twin pallet,
X Y Z 1,050/920/990mm,
max workpiece size 1,050mm dia x 1,115mm high,
max workpiece weight per pallet 1,200kg,
an incredible 60m/min X, Y and Z axes, 60m/min max feedrates,
150 tools on a 240 ATC magazine (rack type),
70 Bar high-pressure coolant through the spindle

Category: Machining centres

Seller's location: Coventry, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 12 Jul 2022
