50 ton Vacuum Presses
(To be sold as fully factory rebuilt Press)

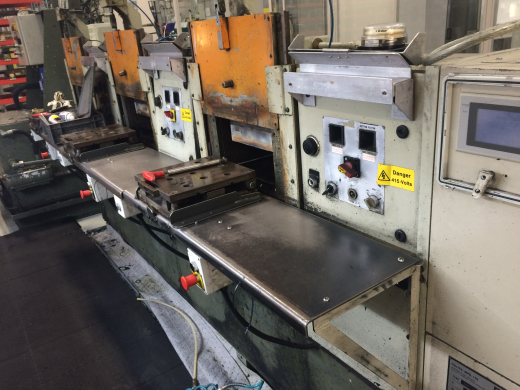

Bank of three vacuum presses
Pressing force: 50 ton
Open daylight (packers in place) Max 115mm
Open daylight (packers removed) Max 155mm
Main Ram Stroke: 50mm
Minimum closed mould height 65mm
Overall Platen Dimensions: 300 x 300mm
Maximum Front to Rear Dimensions of Mould including handles, hinges etc. 345mm
Floor to Face of Bottom Platen – Press open 975mm
Pitch between press centres when arranged as bank of 3: 1020mm
Overall width including control cabinets bank of 3: 3300mm
Total Height including door lifting cylinder 2060mm
Total depth of presses with service manifold 625mm

Category: Presses - hydraulic

Seller's location: ALDRIDE, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 16 Oct 2025
