XYZ Proturn RLX 1630 ProtoTRAK CNC Gap Bed Centre Lathe #78754

Photo 1

Photo 2

Photo 3

Photo 4

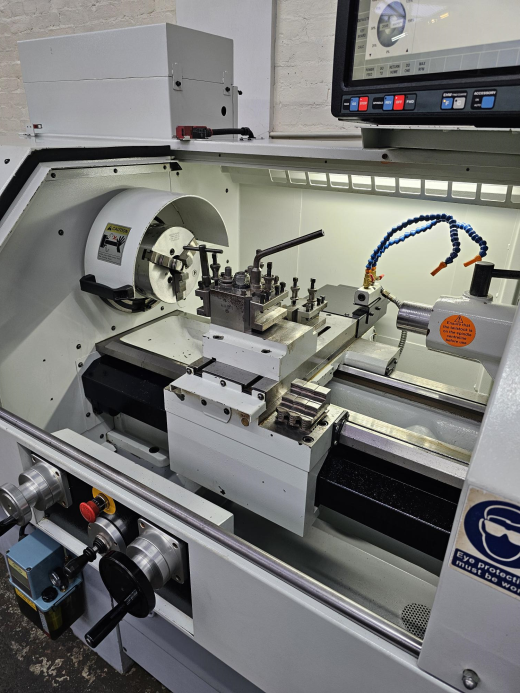

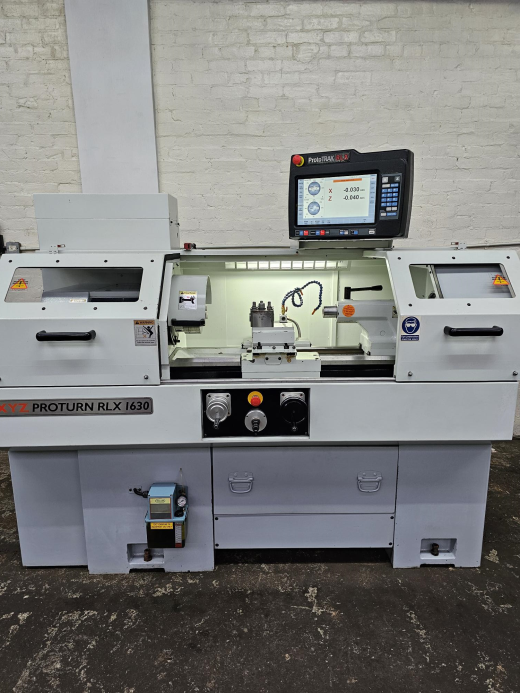

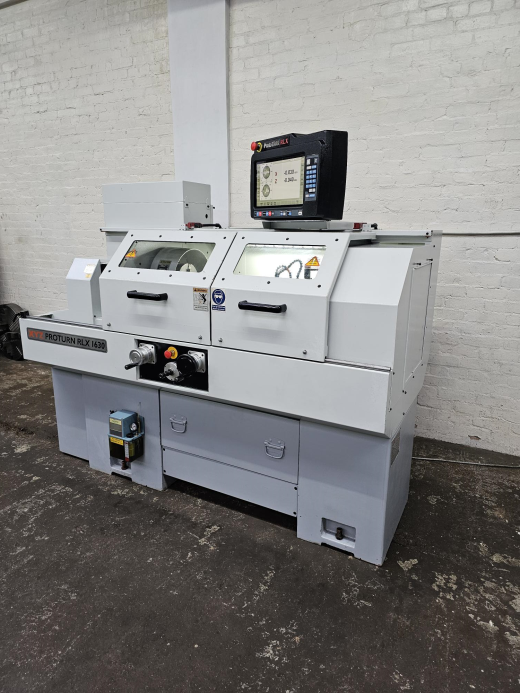

XYZ Proturn RLX 1630 ProtoTRAK CNC Gap Bed Centre Lathe

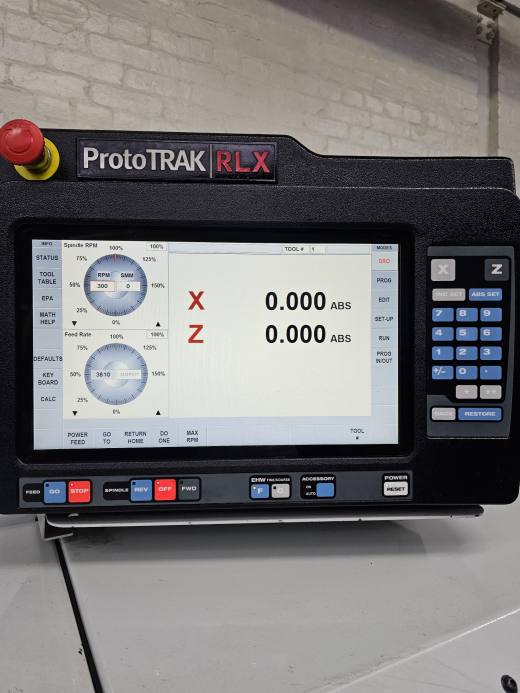

ProtoTRAK RLX Control (2020)
Max’ Distance Between Centres 760mm
Max’ Swing over Cross-slide 218mm
Max Swing over Bed 400mm
Spindle Bore 52mm
Spindle Speeds 150 – 2500 rev/min
Spindle Motor 5.75Kw
Spindle Camlock D1-6
Quick Change Tool Post
Tailstock MT4
Tailstock Dia’ 60mm
Tailstock Travel 127mm
Manufactured | 2020
Weight 1560Kgs

Supplied with:

Two-axis CNC, Two-axis DRO.
TRAKing, Constant surface speed.
Electronic hand-wheels for X & Z Axes.
Joystick for feed & rapids.
Interlocked chuck guard and main guard.
Quick change toolpost with holders.
3 Jaw chuck.
Coolant.

For sale with *Jet Machinery Ltd*
Jet Machinery Stock No: #78754
Machine Serial Number: 16P20100-135
Cost: £24,950.00 + VAT

Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details.

Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.


Category: Lathes - CNC

Seller's location: West Midlands, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 10 Jun 2024
