XYZ Proturn RLX 1630 ProtoTRAK CNC Gap Bed Centre Lathe #78804

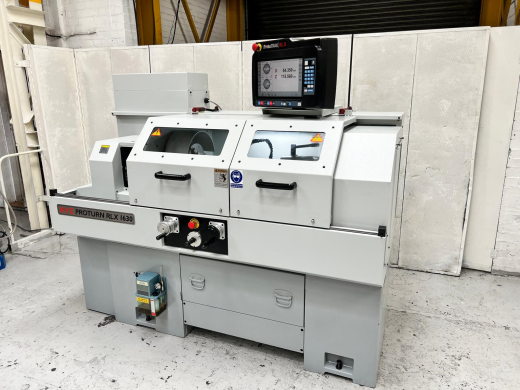

Photo 1

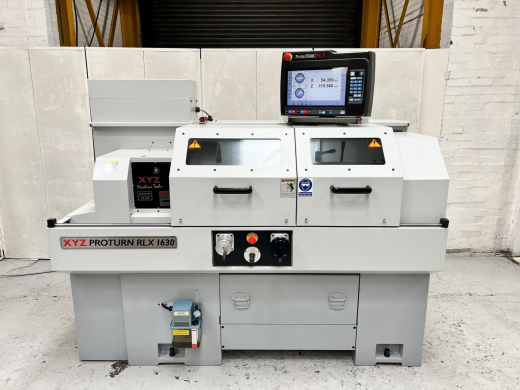

Photo 2

Photo 3

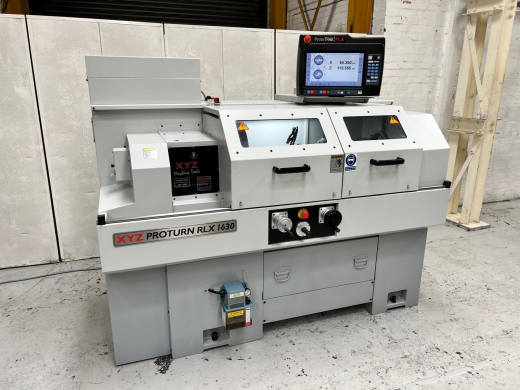

Photo 4

XYZ Proturn RLX 1630 ProtoTRAK CNC Gap Bed Centre Lathe

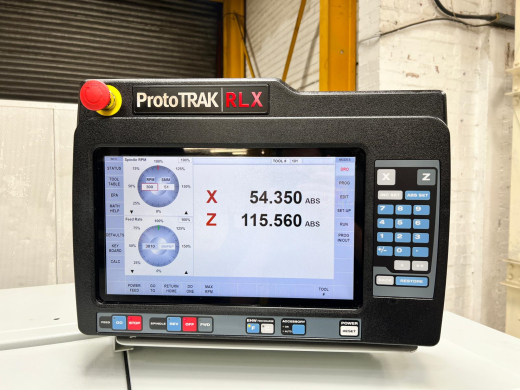

• ProtoTRAK RLX Control (2021)
• Max’ Distance Between Centres 760mm
• Max’ Swing over Cross-slide 218mm
• Max Swing over Bed 400mm
• Spindle Bore 52mm
• Spindle Speeds 150 – 2500 rev/min
• Spindle Motor 5.75Kw
• Spindle Camlock D1-6
• Quick Change Tool Post
• Tailstock MT4
• Tailstock Dia’ 60mm
• Tailstock Travel 127mm
• Manufactured | 2021
• Weight 1560Kgs

Supplied with:

• Two-axis CNC, Two-axis DRO.
• TRAKing, Constant surface speed.
• Electronic hand-wheels for X & Z Axes.
• Joystick for feed & rapids.
• Interlocked chuck guard and main guard.
• Quick change toolpost with holders.
• 3 Jaw chuck.
• Coolant.

For sale with *Jet Machinery Ltd*
Jet Machinery Stock No: #78804
Machine Serial Number: 16P201000-303
Cost: £27,950.00 + VAT

Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details.

Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.


Category: Lathes - CNC

Seller's location: West Midlands, UK
