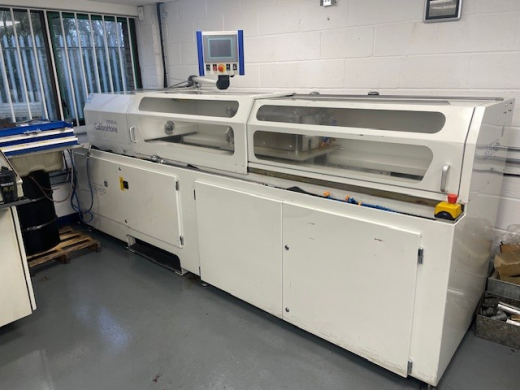

DELAPENA E2000-XL Calibre Hone, LONG BORE PRECISION HONING MACHINE FOR STRAIGHT AND TAPERED BORES

Photo 1

Photo 2

Photo 3

Photo 4

Year 2014

Capacity and Stroke :- Diameter range 5 – 50 mm, Stroke length – Fully adjustable 3 – 1200 mm, Stroking motor speed – Fully adjustable 1 – 25 m/min, Stroking motor power 12.0 Nm, Stroking motion – Precision recirculation ball screw, Short stroking – Fully programmable length and frequency,

Spindle Drive and Stone Expansion :- Spindle speed – Fully adjustable: 300 – 2500 rpm, Spindle motor power 3 kW, Braking – Dynamic braking resistor, Feed system – Programmable electromechanical, Feed rate – 2 programmable speeds for each cycle + timer, Incremental feed 0.1 micron increments per second, Feed movement – Precision ball screw, Stone pressure – Programmable to 670N, Wedge retraction – Programmable, Wedge retraction speed – Programmable.

Weight 1500 kg, Overall size 3500 mm x 1080 mm x 1830 mm High.

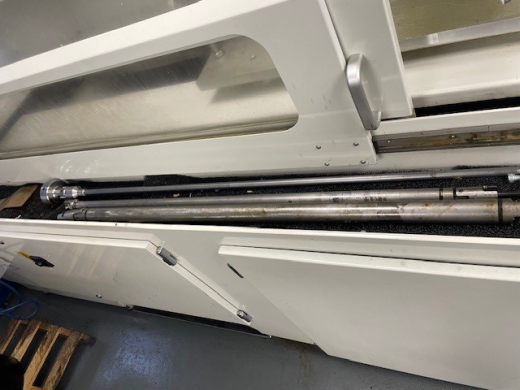

Complete with Honing bars, Machine manual.

Condition :- EXCELLENT, VERY LITTLE USED.

Category: Honing

Seller's location: West Midlands, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 28 Jan 2025
