Devlieg 2B-36 Jig Borer

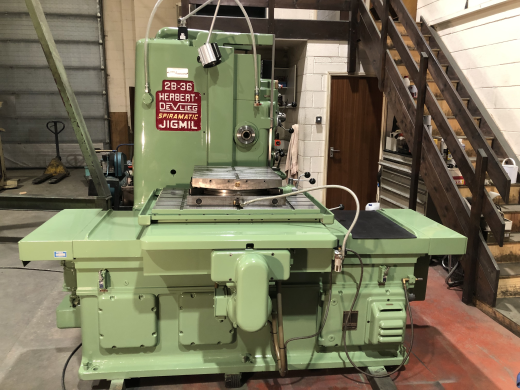

Photo 1

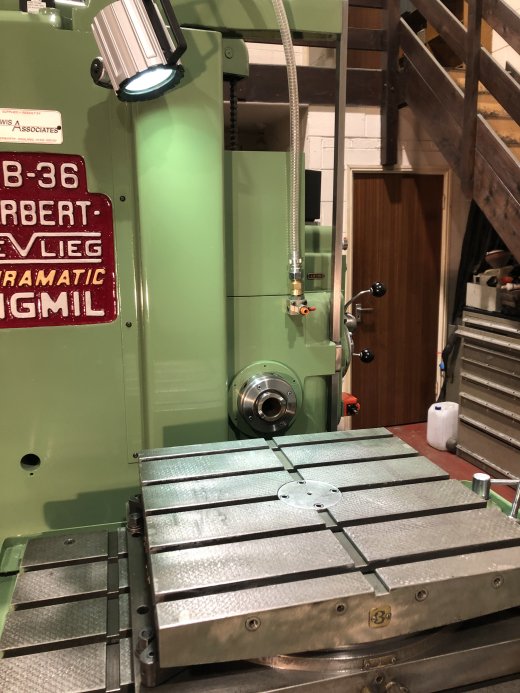

Photo 2

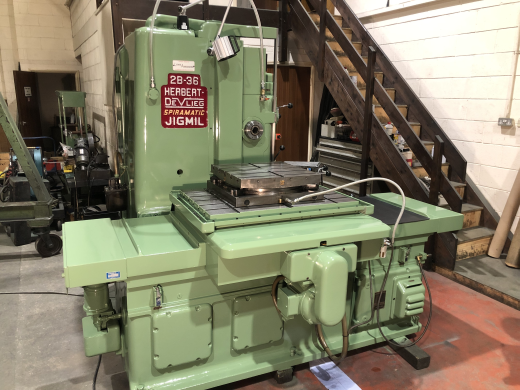

Photo 3

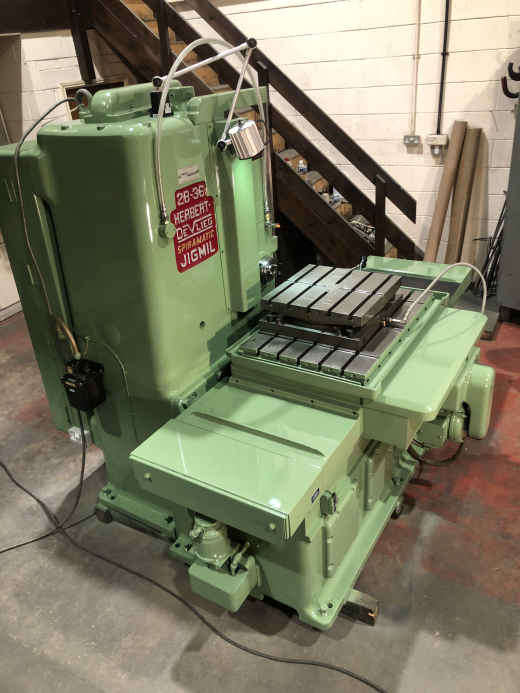

Photo 4

DEVLIEG 2B-36 JIGMIL (Fully refurbished and repainted)
Table Area: 36”/914mm x 24”/610
Horizontal Travel: 36”/914mm.
Vertical Travel: 24”/610mm.
Spindle Bar Travel: 12”/305mm.
Platten Table Travel: 12”/305mm.
Spindle Bar Diameter: 2.5inch/63mm.
Spindle Bar Taper: 40 Int.
Spindle Speeds – 16: 42 – 2000 RPM.
Spindle Motor: 5 HP.
Spindle Feeds – 5: 0.0016”/0.0406mm - 0.018”/0.457mm per min.
Milling Feed Rates – 16: 0.4”/10.16mm – 32”/812mm per min.
Equipped with: 20” x 20” Air Index Table, Auto lubrication system, SONY high accuracy DRO to 3 Axis, Coolant System, Work Light, Spindle Safety switch.
FOOT PRINT: Length = 9’ 6”/2895, Width = 9’/2743, Height = 6’ 9”/2057.
WEIGHT: 5.5 Tonne approx.


Category: Boring

Seller's location: UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 23 Sep 2025
