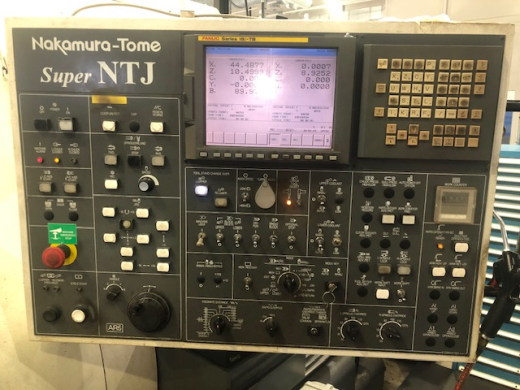

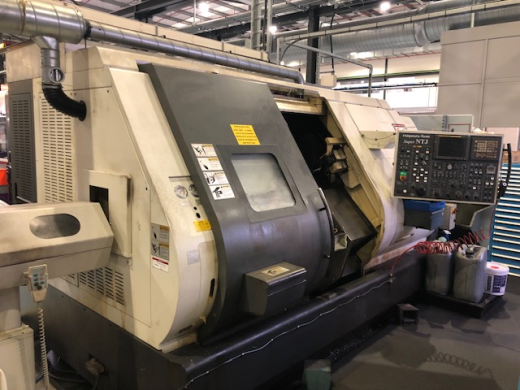

NAKAMURA -TOME SUPER NTJ with FANUC 18i-TB 9-AXIS TURN/MILL CENTRE

Photo 1

Photo 2

Photo 3

Photo 4

NAKAMURA -TOME SUPER NTJ with FANUC 18i-TB 9-AXIS TURN/MILL CENTRE, YoM. 2003/4, S/n: B150509.

MAINE SPINDLE: Bar diameter = 65 mm, Maximum turning Diameter = 190mm, Spindle Nose = A2-6, Spindle Power = 15 Kw, Spindle Speed = 4500 RPM, C Axis indexing = 0.001 degree.
SUB SPINDLE: Bar Diameter = 51 mm, Spindle Nose = A2-5, Spindle power = 11 Kw, Spindle Speed = 5000 RPM, C Axis indexing = 0.001 degree, Stroke = 760 mm.

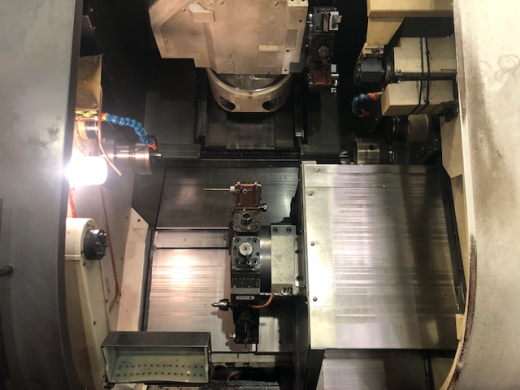

UPPER TURRET: Number of positions = 24, Number of motorised positions = 24, Axis Travels: X = 345mm, Y = +/- 45mm, Z = 1240 mm, Speed of live tools = 6000 RPM, Power for live tools = 5.5 Kw, B Axis Travel = +/- 91 degree.
LOWER TURRET: Number of positions = 24, Number of motorised positions = 12, Axis travel: X = 167.5 mm, Z = 685 mm, Speed of live tools = 6000 RPM, Power for live tools = 5.5 Kw.
EQUIPMENT: Full set of live turret tooling, Collet Chuck on main spindle, 200mm Chuck on sub spindle, Tool Eye – tool presetter, Parts catcher, Chip conveyer, Manuals, RS232/Ethernet port.
HYDRA JET: High Pressure Coolant Unit plus standard coolant system

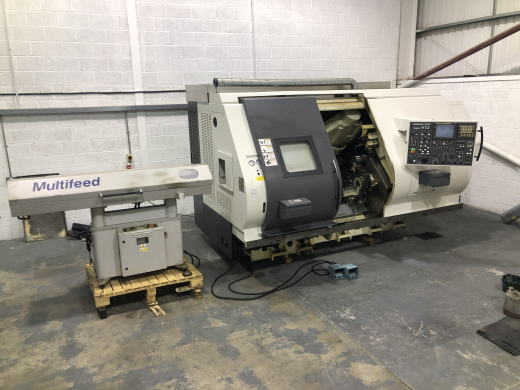

HYDRAFEED - MULTIFEED MX.1B Bar Feed Unit. with equipment.
ABSOLUTE ODR 2000 – stand alone fume extraction unit
Full set of Collets and 12 sets of additional chuck jaws in different forms.
FOOTPRINT: Machine: length 4 mtr. x 2.6 mtr. wide x 2.4 mtr. high
Barfeed: length 2.mtr. x .7 mtr. wide x 1.2mtr. high
MACHINE WEIGHT: 13000 Kg.


Category: Lathes - CNC

Seller's location: UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 23 Sep 2025
