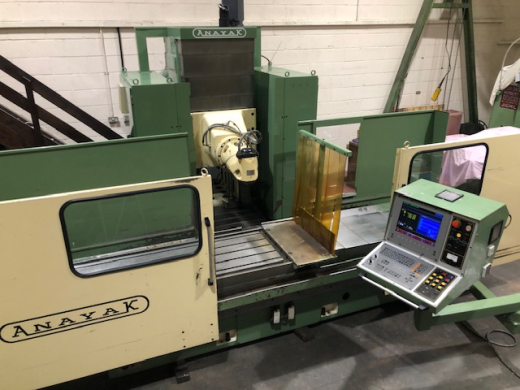

ANAYAK VH 2200 BEDMILL

Photo 1

Photo 2

Photo 3

Photo 4

ANAYAK VH 2200 BEDMILL
Table Area: 2200 x 700mm/86.5 x 27.5inch.
Number of T slots: 5 x 18mm width x 125mm spacing
Travels: X Horizontal = 2000mm/79inch, Y Cross = 800mm/31.5inch, Z Vertical = 900mm/35.5inch.
Speed Range: 60 – 2500 RPM.
Spindle Taper: ISO 50, Hydraulic tool clamping.
Spindle Head Adjustment: Manual vernier positioning.
Feed Rate: 10 – 5000mm/min.
Power: 29 Kw
Weight: 13000Kg.
Footprint: Length = 4600mm, Width = 3200mm, Height = 3100mm.

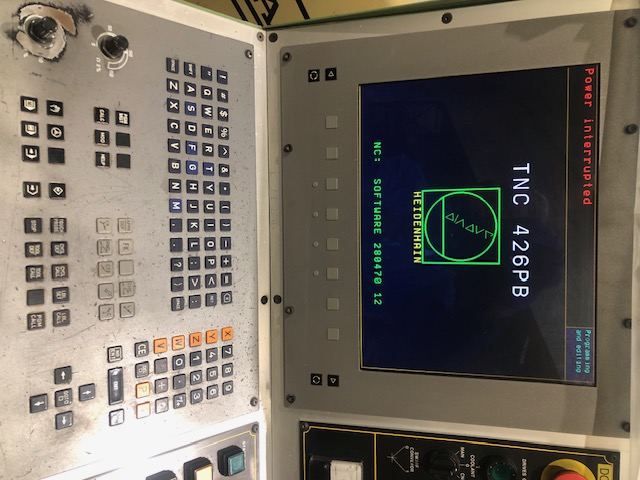

Equipment: Pendant mounted Heidenhain TNC426 Control, Motors & Drives, Siemens Coolant System, Bedway Teliscopic Guards, Front Sliding Door Guards.



Category: Milling - NC/CNC

Seller's location: UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 23 Sep 2025
