DOOSAN VT1100M Turning Centre With Fanuc 0iTF Control. Year 2023

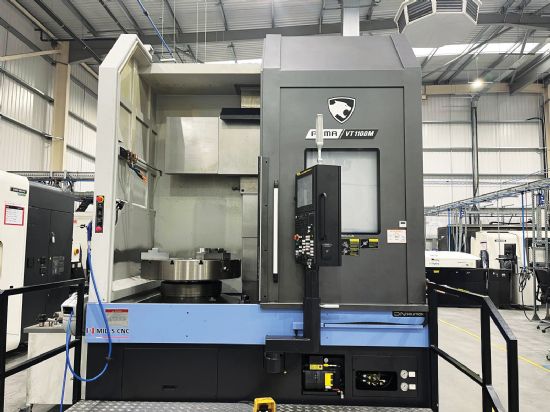

Photo 1

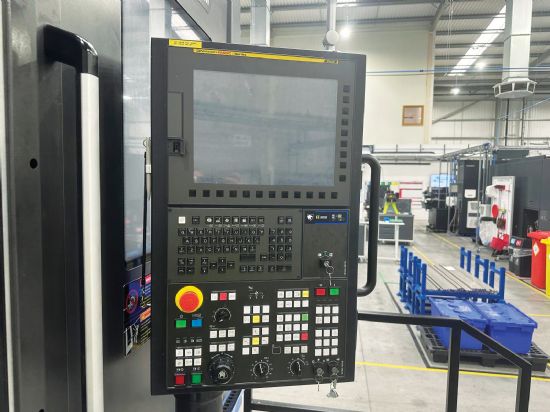

Photo 2

Photo 3

Photo 4

Swing over bed 1,270mm.
Swing over saddle 1,000mm.
Max turning diameter 1,100mm.
Max turning length 960mm.
Max workpiece weight (incl. chuck) 2,200kg.
Spindle nose 702-4-NO.15.
Spindle max power 65 / 55 / 45kW.
Spindle max torque 7,552Nm.
Spindle speed max 850rpm.
Integral box guideway construction.
X-axis travel 580mm.
Z-axis travel 1,000mm.
C-axis travel 360deg.
X-axis rapid traverse 20m/min.
Z-axis rapid traverse 20m/min.
C-axis rapid traverse 14r/min.
Type BMT85P.
Number of stations 12.
OD tool size 32mm square.
Boring bar size 80mm diameter.
Rotary tool power 7.5/11.0kW.
Rotary tool speed 3,000rpm.
Rotary tool collet size ER50 (6-32mm diameter).
Power requirements 98.77kVA.

Additional accessories: Swarf conveyor MH500 type (rear exit).
Swarf bin.
FSE 70 bar NOP pump upgrade for switchable duty 3 pressures: 20, 40 and 70 bar (back pressure) via M code.
Coolant chiller.
Operator working platform.
Coolant wash gun.
Renishaw OLP40 inspection probe.
Filtermist FX7002F oil mist separator with F Monitor 2.

HC40G Samchully closed centre chuck including 1 set of hard jaws & 1 set of soft jaws.
2-off face-type toolholder (R78935).
2-off cross-type toolholder (R78756A).

Complete with a selection of 8 x unused live tooling.
550 cutting hours

Category: Public Auction

Seller's location: Lancs, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 24 Feb 2026
