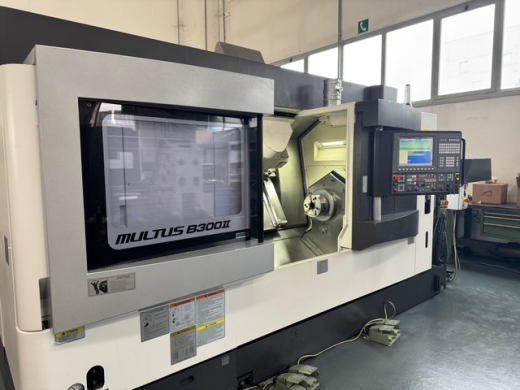

Okuma MULTUS B300II Lathe

Photo 1

Photo 2

Photo 3

Photo 4

with Okuma OSP-P300S-H Control,
Y Axis Travel 160mm,
60 Tool ATC
High Pressure Coolant Preparation: 70 Bar
External Coolant Pump: 0.8kW, 6 Bar, 20 L/Min
Electric Spindle Orientation
Air Blast for Chuck Cleaning,
Collision Avoidance System (CAS)
Chip Conveyor Preparation
Big Bore Spindle ASA 6": 22/15 kW, 3800 rpm
High-precision C-axis positioning
Continuous B-axis
Tool Magazine with 60 positions/ 0.1 Micron Resolution Software
API Library 2 for OSP-P300S
Standard Right Side Chip Conveyor
15 Bar Coolant Pump 20 L/min/ Filtration unit with 4 fabric filter bags (25 micron), pump 15 bar, 20 L/min,
SCHUNK ROTA THW+260-81R A8 chuck with KITAGAWA SS1770 cylinder for Big Bore main spindle,
SCHUNK ROTA THW+215-66 A6 chuck with KITAGAWA SS1452 cylinder for sub-spindle, Y-Axis
Machining Kit: Helical interpolation /Y-axis turning function with offset turning toolholders/ Coordinate conversion
Double pressure clamping system for main spindle chuck via M-codes (irreversible)
Double pressure clamping system for sub-spindle chuck via M-codes (irreversible),
5-Axis Machining Kit: Super NURBS on 5 axes /Vector control /DNC-DT interface /Tool position control/ 3D coordinate transformation /Helical interpolation (includes inclined plane profile software),
Main and sub spindle: asa 8, 15kW, 5000 rpm, 651 mm bar capacity
max turning diameter: ⌀630 mm
swing and distance between spindle noses: 1290 mm
B-axis: continuous, indexing 0. 001°, hsk63, 11 kW, 6000 rpm
milling spindle hsk a63: 10000 rpm, 16/11kW.
Country of Origin: Japan

Category: Public Auction

Seller's location: Birmingham, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 10 Mar 2026
