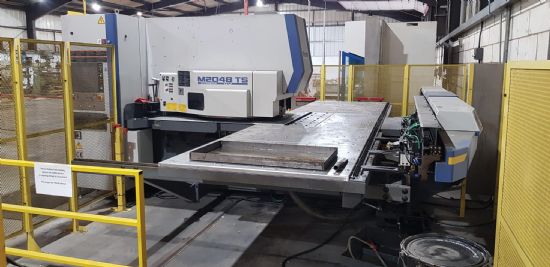

MURATEC WIEDEMANN Motorum 2048 CNC Turret Punch

Photo 1

Photo 2

Photo 3

Photo 4

Year 2017.
Fanuc 30i touch screen control,
20-ton capacity,
sheet size (with one reposition) 1,250mm x 2,500mm,
thickness 6.35mm,
Y-axis 1,360mm, X-axis 2,550mm,
punch accuracy +/-0.1mm,
throat 1,340mm,
max sheet weight 150kg,
hit rate (1.0T): 25mm pitch 8.3mm stroke 355hpm, 0.5mm pitch 1.4mm stroke, 900hpm,
simultaneous axis speed 125m/min,
turret index speed 35rpm,
Compressed air quantity: 100nl/min,
pressure 0.5MPa,
power 19kVA.
Plus: Good set of tooling.
One owner from new.
Few hours.
Safety guards

Category: Sheet metal-working

Seller's location: West Midlands, UK
