NAKAMURA TOME Super NTJ CNC Lathe

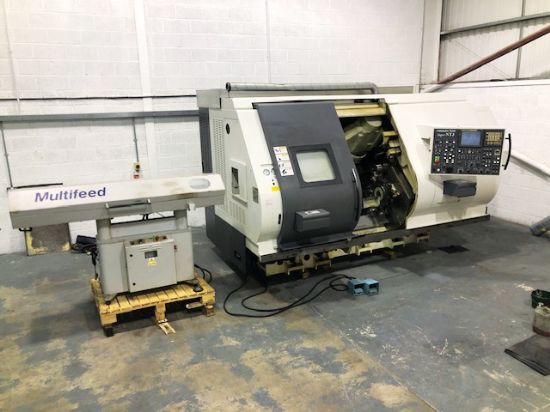

Photo 1

Photo 2

Photo 3

Photo 4

Year 2003.
Fanuc 18 iT B control,
chuck size 210mm,
max turning dia 200mm,
max turning length 620mm,
between centres 780mm,
draw tube dia 80mm,
travels (turret 1): X-axis 750mm, Z-axis 130mm, Y-axis 89mm / +/-45mm,
(turret 2): B-axis programmable indexing: +/-91º in 1º,
B2-axis 760mm,
rapid traverse X1, X2: 629.9ipm,
Z1, Z2: 1,574ipm,
Y-axis: 236.22,
B2: 1,574ipm,
turret 2x 12-stations,
spindle speed 50-5,000rpm,
bar capacity 65mm,
spindle nose A2-6,
spindle index full C-axis programmable (0.001º) spindle and sub-spindle,
spindle drives 20hp left, 15hp right,
rotary tool drive 7.5hp,
number of turrets 2,
12 live stations on each turret,
live milling max speed 6,000rpm.
Plus: CNC short magazine bar feed,
turret tooling,
swarf conveyor,
manuals

Category: Lathes - CNC

Seller's location: West Midlands, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 14 Apr 2026
