Breton Ultrix 800

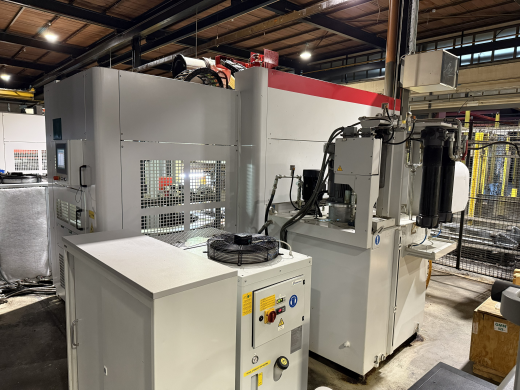

Photo 1

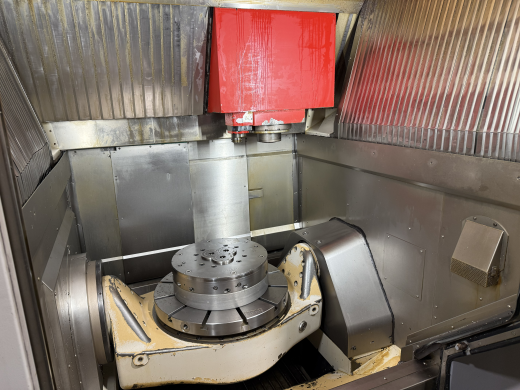

Photo 2

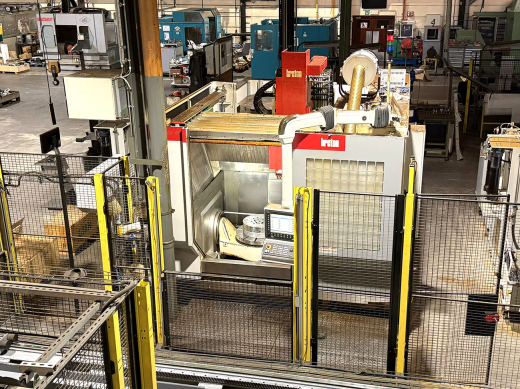

Photo 3

Photo 4

X-axis
800 mm
Y-axis
900 mm
Z-axis
600 mm
Table dimensions
dia 700 mm
Max weight on the table
700 kg
Admission in spindle (ISO)
HSK-E40/KM63
Power on the spindle
45/40 kW
Drilling-capacity
yes
Tapping-capacity
yes
Control
Siemens 840D Solution Line
Number of axes
5
Toolchanger
yes
Number of toolholders
150 positions
Number of rotations
40 000 rpm!!
Length
4655 mm
Depth
5890 mm
Height
3415 mm
Weight
17 ton
Cooling-system
yes
Additional info
Type: Ultrix 800 RT
The Ultrix 800 RT is a multifunction machining center with 5 interpolated axes and a moving gantry design for high-speed milling, turning, grinding, drilling, tapping, finishing, deburring and roughing of complex parts.
When used for turning > vertical lathe:
- Swivel range: 1100 mm
- maximum weight of the workpiece: 700 kg
- 40/30 kW on the table
- Maximum torque on the table: 1500 Nm
- Maximum speed of the table: 800 rpm!!
- hydraulic clamping on table
- tool taper for turning: KM63
- Tool changer with 150 positions, of which 24 for turning.

When used for milling, grinding, drilling, ... > machining center:
- X-axis: 800 mm
- Y-axis: 900 mm
- Z-axis: 600 mm
- A-axis: -30° / 110°
- C-axis: continuous
- maximum weight of the workpiece: 700 kg
- 55/40 kW on the spindle
- maximum torque on the spindle: 18/16 Nm
- maximum 40,000 revolutions per minute
- tool taper for milling: HSK-E40
- Tool changer with 150 positions and 126 tool positions for milling, grinding and drilling

List of options mounted on the machine:
1 - High-speed spindle with 40,000 rpm
2 - table diameter 700 mm with hydraulic clamping
3-150-position tool changer
4 - chip conveyor belt
5 - cooling system with recovery
6 - coolant temperature control
7 - high pressure cooling (40 to 70 bar) door spindle
8 - smoke extraction system
9 - Chip collection box
10 - Presetting System and Tool Integrity: Laser and Mechanical Probe for Measuring Instruments
11 - Renishaw probe

D.01 16067
www.aptint.com


Category: Machining centres

Seller's location: belgium
