Kiheung CNC Bed Type Milling Machine U 1200N (X3100)

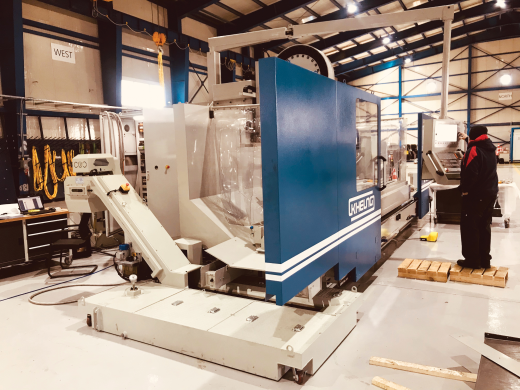

Photo 1

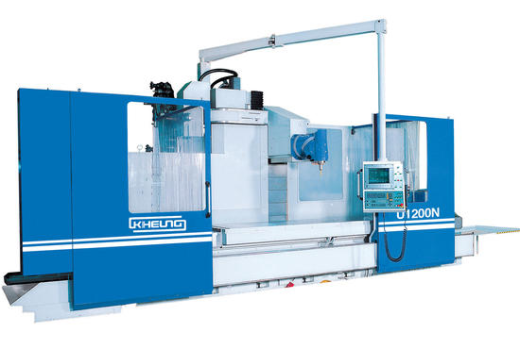

Photo 2

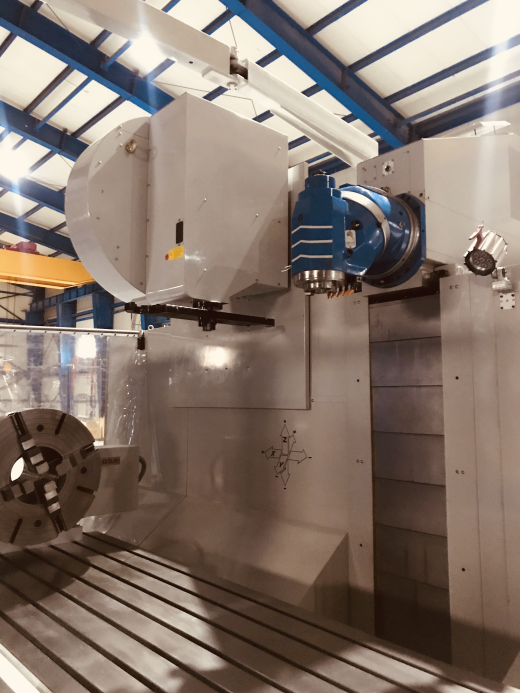

Photo 3

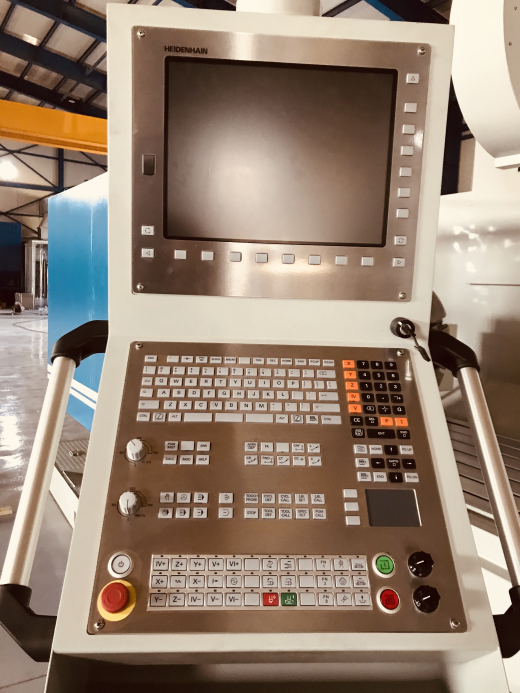

Photo 4

Un-used Kiheung CNC Bed Type Milling Machine - model U 1200N (X3100) - with Heidenhain i-TNC 640 Control.
MACHINE SPECIFICATIONS
TABLE Surface 3,600 x 1,050 mm
T-slots 7 x 22 mm H7
Distance between T-Slots 125 mm
Maximum permissible load 10,000 kg
Longitudinal travel, X – axis 3,100 mm
Cross travel, Y – axis 1,250 mm
Vertical travel, Z – axis 1,350 mm
Maximum axis feed rate 5,000 mm/min
Rapid feed rate 10,000 mm/min
SPINDLE Taper ISO #50
Maximum speed 4,000 rpm
Gear range 0 – 1,000 & 1,001 – 4,000 rpm
Spindle motor. 28/38 kW
Number of tools 24
Gross weight. 24,000 kg
SUPPLIED WITH: Flood Coolant System and Centralised Lubrication System.
FITTED OPTIONS: A4 automatic universal head (2.5 x 2.5); 16 Bar through spindle coolant and 24 tool automatic tool changer
POA


Category: Milling - CNC 4th Axis

Seller's location: Lincolnshire, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 1 Jul 2026
