2017 Mazak Variaxis i700

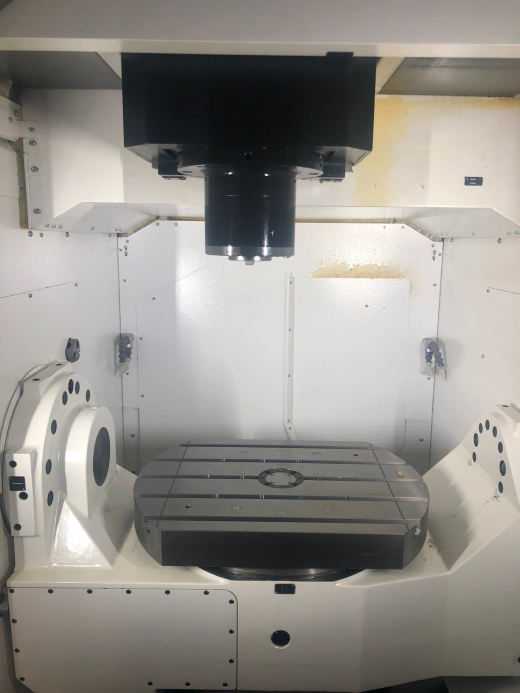

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Multiplex Surface / Simultaneous 5-axis machining Centre

Mazatrol Smooth X
Table size ø 700 mm
Maximum workpiece diameter 850 mm
Maximum workpiece height 500 mm
X-axis stroke (saddle right/left movement) 630 mm
Y-axis stroke (column back/forth movement) 1100 mm
Z-axis stroke (spindle up/down movement) 600 mm
A-axis (table tilt) travel amount/indexing 0.0001° -120° to +30° (axis control)
C-axis (table rotation) travel amount/indexing 0.0001° ±360º (axis control)
Spindle speed maximum 12000 rpm
Rapid traverse rate (X/Y/Z) 60/60/56 m/min
Rapid traverse rate (A/C) 18000°/min
Tool storage capacity 30
Tool shank type 40 INT
Swarf conveyor
Internal cooling 15 bar, 35 l/min
Cooling system 30 l/min, 4.5 bar
Preparation of oil mist extraction
Preparation 70 bar incl. Interface for High-pressure equipment
Electronic handwheel
Additional M functions
Mazak Monitoring System B RMP600
Synch tapping
5-axis machining package for SmoothX
Tool breakage detector
Tool length measurement
EIA / ISO
3D touch probe
Interface for LAN
SD Memory Card I / F
Machine weight 15000 kg
Machine dimensions 3457 x 2400 x 4295 mm

*** "LIKE NEW" MACHINE ***

Category: Machining centres

Location: Surrey, UK
