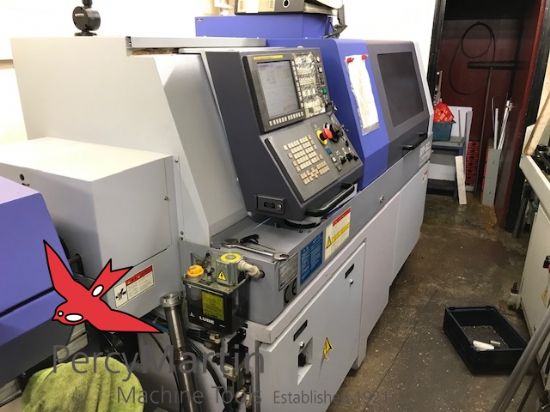

Star SR-32J 2014 CNC Sliding Head Lathe

Photo 1

Photo 2

Photo 3

Photo 4

C axis & Milling, Coolant, Interlocked guards, Low Volt Light, Magazine Barfeed, Tooling, C Axis (0.001degree) on Sub Spindle, Parts Conveyor
Control: FANUC 32i-B
Bar Capacity: 32mm
Maximum Cutting diameter: 32mm
Maximum Cutting Length: 280mm
Maximum Drilling diameter: 8mm
Maximum Tapping Capacity: M6 10
Milling Motor Power: 1.2kW
Milling RPM: 5000rpm
Rapid Feedrates: 24m/minute
Spindle Motor Power: 7.5kW
Spindle Speed: 7000rpm
Sub Spindle C axis: 0.001 degree
Sub Spindle Max Speed: 7000rpm
Sub Spindle Motor: 3.7kW
Barfeed: FMB Turbo 3-36/3200
Tool Change Capacity: 6 + 4 + 4 + 5 + 4
C axis: 0.001 degree
Number of Axis Controlled: 7 (Z, ZB, X, XB, C1, C2. Y)
Machine Dimensions: 2711 x 1275 x 1705mm
Machine Weight: 3100kg

Category: Lathes - CNC

Seller's location: Coventry, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 31 Dec 2021
