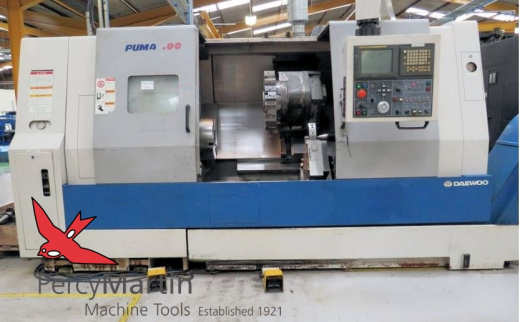

Daewoo Puma 400B 2002 CNC Lathe

Photo 1

Photo 2

Photo 3

Photo 4

Swarf Conveyor, Tool setter, Coolant, Tailstock, Interlocked guards, Low Volt Light, 3 Jaw Chuck, Fixed Steady, Gearbox, Manuals, Tooling
Control: FANUC 18i-TB
Swing: 770mm
Swing Over Carriage: 590mm
Bar Capacity: 117mm
Chuck Size: 15"
Maximum Cutting diameter: 550mm
Maximum Cutting Length: 1043mm
Quill Diameter: 60mm
Turret Positions: 10 Station
Rapid Feedrates: XZ: 16 x 20m/minute
Spindle Motor Power: 26kW
Spindle Nose: A2-11
Spindle Speed: 2000rpm
Tailstock Taper: MT #6
X axis Travel: 362mm
Z axis Travel: 1105mm
Machine Dimensions: 4582 x 2440 x 2292mm
Machine Weight: 9550kg

Category: Lathes - CNC

Seller's location: Coventry, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 31 Dec 2021
