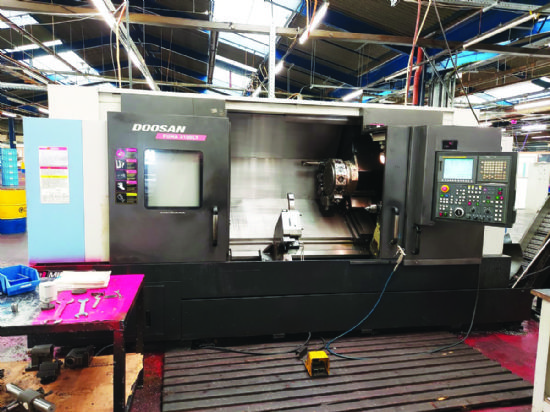

2011 DOOSAN 3100LY

Photo 1

Photo 2

Photo 3

Photo 4

C axis 0.001º,
chuck 12in, Fanuc I Series,
max cutting dia 420mm,
max cutting length 1,280mm,
milling motor power 5.5/7.5kW,
milling 5,000rpm,
rapids 30m/min,
spindle motor power 18.5//22kW,
spindle nose A2-11,
spindle speed 2,800rpm,
swing 850mm,
swing over carriage 670mm,
tailstock quill stroke 100mm,
tailstock taper MT #5,
tool size 25mm,
tooling config BMT65,
12-station turret,
X-axis travel 293mm,
Y-axis travel +/-65mm,
Z-axis travel 1,350mm

Category: Lathes - CNC

Seller's location: Coventry, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 31 Dec 2021
