Boko Model F3 Universal Boring and Milling Machine

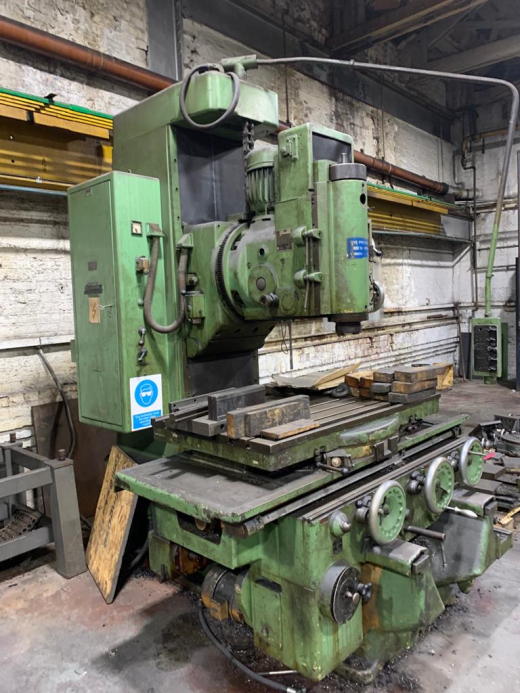

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Boko Model F3 Universal Boring and Milling Machine
Spindle Head swivels 90 Deg. in both directions
Spindle IS 50 Taper
Spindle speeds variable 45 – 2250 rpm
Spindle down feed 12” (300mm)
Spindle Drive motor 5.5HP
Table 31.5” x 51.5” (800mm X 1300mm)
Table rotates through 360 Deg. With Milling feeds and can be clamped at any angle.
Max dia for circular Milling 98.5”(2500mm)
Longitudinal Travel of table 55”(1300mm)
Transverse travel of table 27.5”(700mm)
Max weight load on table 3,000kg
Pendant Control
Weight Approx. 7.5 Ton

Category: Milling

Seller's location: South Yorkshire, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 2 Feb 2021
