CORREA FP40/40 - 895199 CNC Milling machine - Bridge type

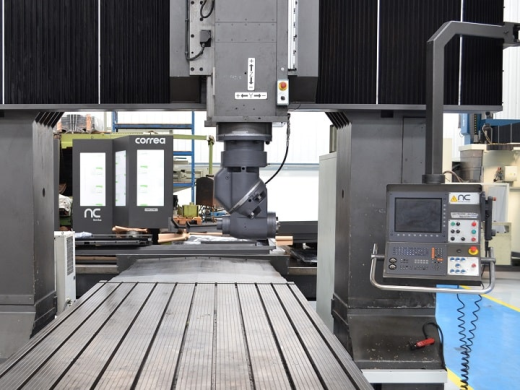

Photo 1

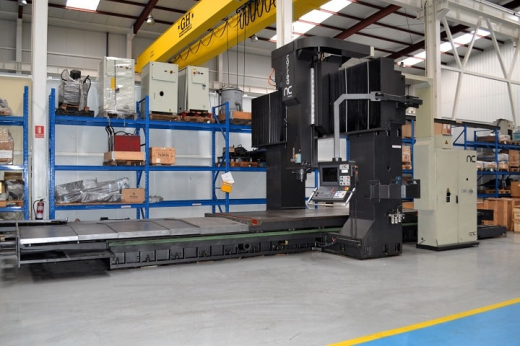

Photo 2

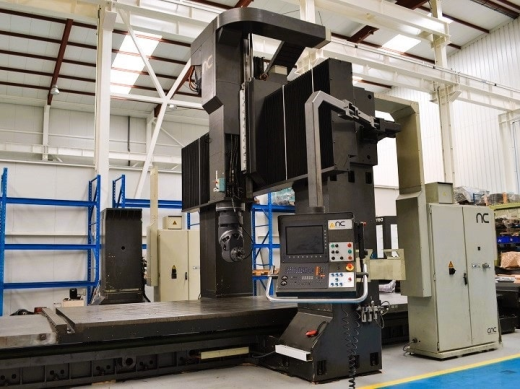

Photo 3

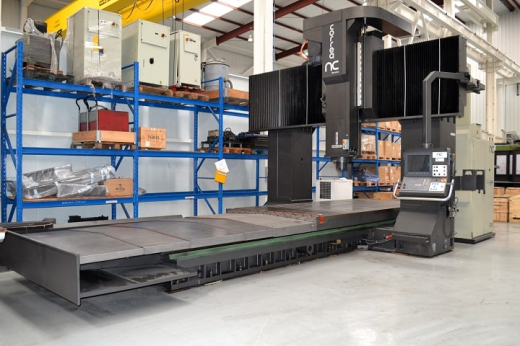

Photo 4

Control: HEIDENHAIN TNC-530
Year: 2004

• Table dimensions: 4000 x 2000 mm
• Number of T slots: 11
• T slots dimensions: 22 mm

• X axis traverse: 4000 mm
• Y axis traverse: 3000 mm
• Z axis traverse: 1000 mm
• Distance between columns: 2530 mm

• Universal manual UM40
• Tool clamping system: Hydraulic
• Taper nose: ISO50
• Speed range: 20 - 3.000 rpm (5.000 rpm direct exit)
• Spindle power: 30 kW

• Feedrate: 7000 mm/min
• Rapid feedrate (X / Y,Z): 15000 / 12000 mm/min

• Maximum weight on table: 10000 Kg
• Machine weight approximate: 45300 Kg
• Machine dimensions approximate: 10926 x 4768 x 5110 mm

• Guarding
• External coolant.
• Electronic handwheel: New HR-510
