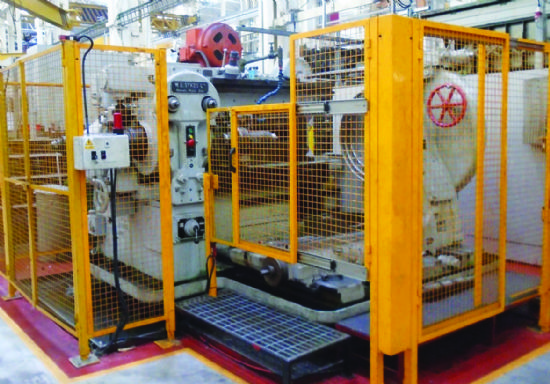

SYKES 5E Gear Generator for Double Helical (Herring-bone) Single Helical & Internal Gears

Photo 1

Photo 2

Photo 3

Photo 4

Stock no 28890
Pitch range (min) 1.5 DP, 17 Module,
pitch range (max) 16 DP, 17 Module,
helix angle range 0-45º,
spindle bore 9.875in/250mm,
max dia 63in/ 1,600mm,
max face width 18in/457mm,
max face with for spur or single helical 10in/254mm.
INTERNAL GEARS: max dia 66in/1,676mm,
max face width 8in/203mm,
max PCD 66in

Category: Gear Cutting

Seller's location: Lancs, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 31 Dec 2021
