GLEASON Number 24 Gear Generator

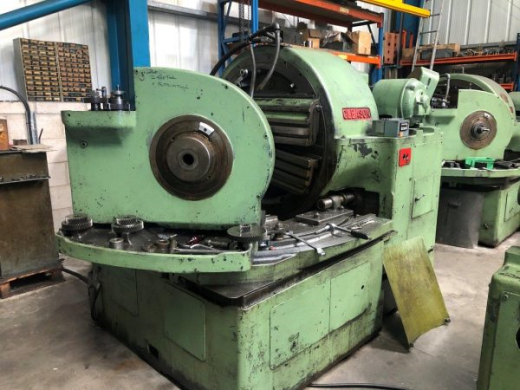

Photo of machine

Photo 1

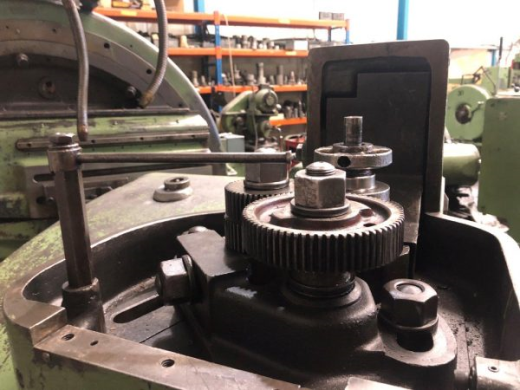

Photo of machine

Photo 2

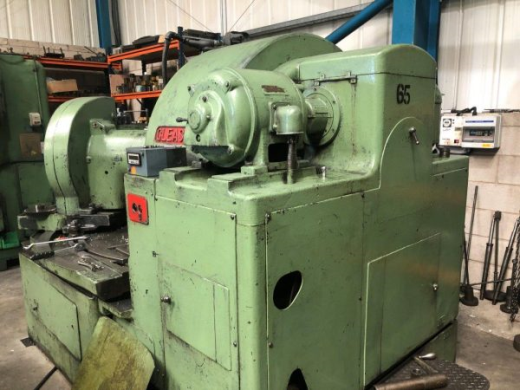

Photo of machine

Photo 3

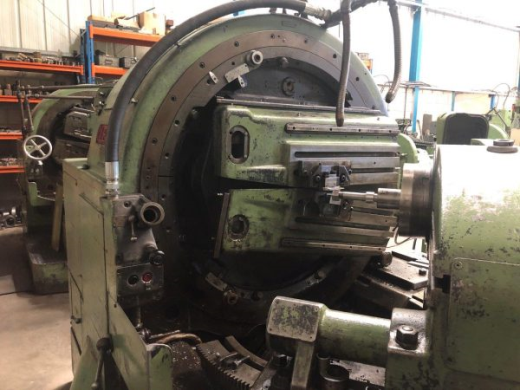

Photo of machine

Photo 4

Photo of machine

Longest cone dist (13/4in stroke) 18in (457mm),
shortest cone distance 0,
max pitch dia 10 to 1 ratio 35.5in,
max pitch dia 2 to 1 ratio 31.75in,
max pitch dia 1 to 1 ratio 25in,
min pitch angle 5.42º,
extreme ratio 10 to 1,
max pitch 1.25 DP (20.4 module),
max pitch angle (shafts at 90º) 84.18º,
max face length 6in (152mm),
index range 10-100 inclusive and most numbers up to 200,
work spindle bore: dia (large end of taper) 6,
taper per foot 0.75in,
depth of taper 6in,
dia of thru bore 5in

Category: Gear Cutting

Seller's location: South Yorkshire, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 27 Apr 2021
