In Stock NEW 70-Ton Pelleter

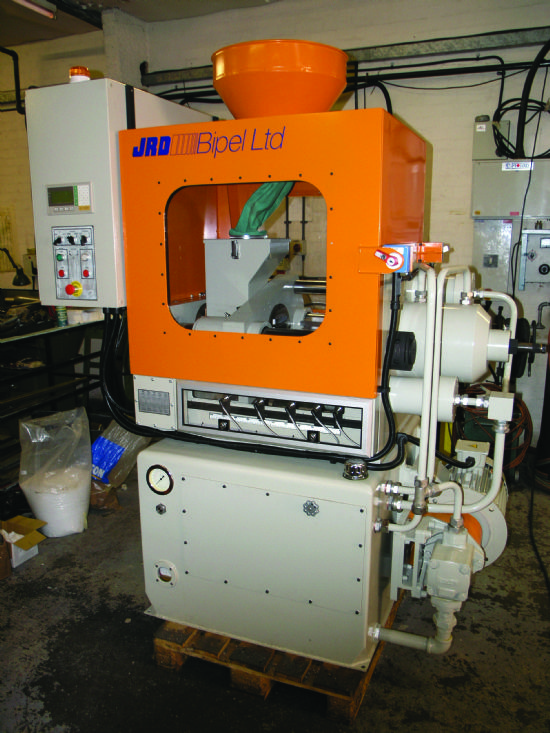

Photo 1

Photo 2

Photo 3

Photo 4

Technical data

Bipel Machine Serial No.:A30263

Model Designation: 700kN PELLETER

Modes of Operation: Automatic

Configuration: Single Station

Design: Self contained

Direction of pressing: Horizontal

Material loading: Automatic

Material Unloading: Semi-automatic

Drive: Self-contained

Main Ram Pressing Force (max): 70 Tons

Main Ram Pressing Force (min): 7 Tons

Main Ram Stroke (max): 2.75 ins

Max Hopper & Die Stroke: 7.25 ins

Max Fill Length: 3 ins

Min Fill Length: 1 ins

Hydraulic Working Pressure: 210 Bar

Machine Overall Height 2020 mm

Machine Overall Width 1700 mm
(with doors closed)

Machine Overall Depth 1050 mm
(with doors closed)

Machine Weight (approx) 2.25 Tonnes

Electrical Motor 15 kW

Electrical Supply 380/400 v 3PH 50Hz
(This can be changed to customers in the USA)

Max Electrical Current 40 amps per phase


Category: Presses - hydraulic

Seller's location: ALDRIDE, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 19 Mar 2024
