ANAYAK VH PLUS 3000 MG-8 5X Milling Machine

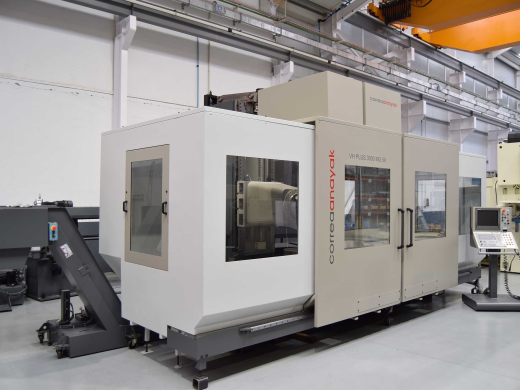

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Manufacturer ANAYAK
Model VH PLUS 3000 MG8
New in Year 2010
CNC HEIDENHAIN iTNC 530
Sempuco Rotary Table Surface 1.250 x 1.250 mm
Turning Table ( B Axis) 0,001º (Continuo)
Max Weight Allowed on table 7.000 kg.
C Axis Turning Index -120 / +120
C Axis Positoning 0,001º (Continuo)
Longitudinal Traverse (X Axis ) 3.000 mm
Transversal Traverse (Y Axis) 1.270 mm
Vertical Traverse (Z Axis) 1.500 mm
Rapid Feeds (X,Y,Z) 20.000 mm/min
Max Working Feed 10.000 mm/min
Taper HSK A 63
Turning Speeds 60 – 18.000 r.p.m.
Main Motor Power 34 kW
ATC INCLUDED
Positions in ATC 40
Hydraulic Chip Conveyor INCLUDED
Internal Coolant 20 Bar INCLUDED
Integral protecting guards INCLUDED
Machine Weight 25.000 kg
Portable Handwheel INCLUDED

Category: Milling - CNC 4th Axis

Seller's location: Spain
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 14 Sep 2021
