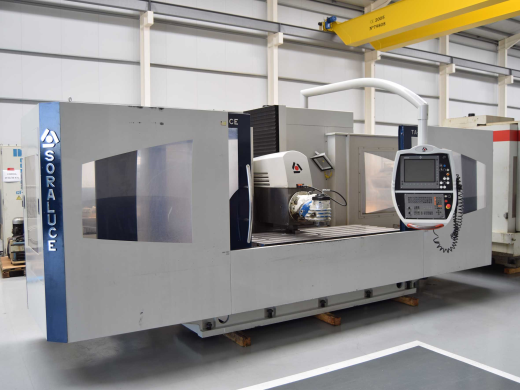

SORALUCE TA 20 Bed Type Milling Machine

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Manufacturer SORALUCE
Model TA-20
Year 2003
CNC HEIDENHAIN TNC-530
Table Surface 2000 x 800 mm.
Number of T Slots 4
T Slots Dimensions 22 mm.
Longitudinal Traverse (X Axis) 2000 mm.
Transversal Traverse (Y Axis) 800 mm.
Vertical Traverse (Z Axis) 800 mm.
Working Feeds (X/Y/Z) 10.000 mm/min
Rapid Traverse 20.000 mm/min
Head Type Universal
Taper ISO 50
Turning Speeds 20-3000 rpm
Head Power 22 Kw
Hydraulic Tool Clamping System INCLUDED
EC Guarding INCLUDED
Carrying Load Table 4.000 kg.
Machine Weight 10.000 kg.
Portable Handwheel Heidenhain HR-410
3D-Rot INCLUDED
Machine Dimension 6.605×3.315×2.730 mm

Category: Milling - NC/CNC

Seller's location: Spain
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 14 Sep 2021
