Jones & Shipman 310T Tool & Cutter Grinder - C51029.01

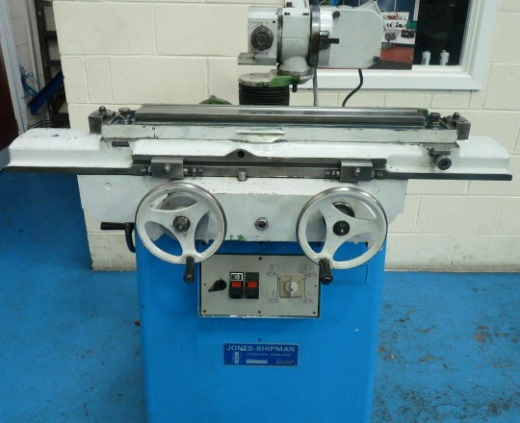

Photo 1

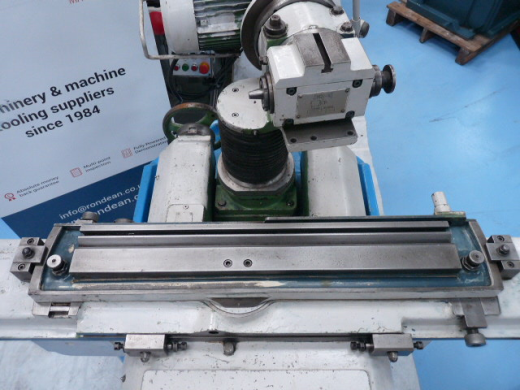

Photo 2

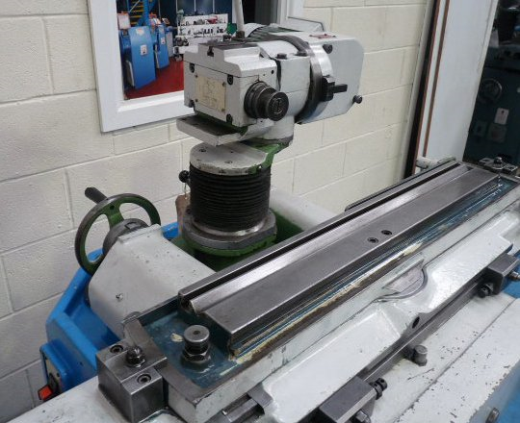

Photo 3

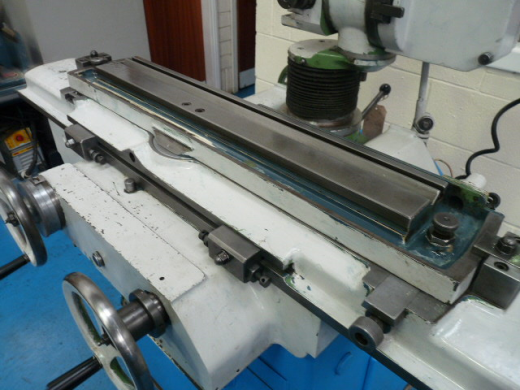

Photo 4

For latest offer please call on 0191 410 5886

JONES & SHIPMAN 310T TOOL & CUTTER GRINDER
with tilting and swiveling wheel head
60 degrees circular adjustment
360 degrees swivel in vertical plane
180 degrees swivel of motor in vertical plane
278mm (10 15/16”) Maximum centre of wheel above table
75mm (2 15/16”) Minimum centre of wheel above table
1.13 kW wheelhead motor

CAPACITY
749 x 108mm (29 ½” x 4 ¼”) table working surface
445mm (17 ½”) Longitudinal Traverse
187mm (7 3/8”) Cross Traverse
203mm (8”) Vertical adjustment of wheelhead
3,600 / 5,000 rpm wheel head speeds (2)
POWER Three Phase Electric's
Dimensions 900 x 800mm 1000kg


Category: Grinding

Seller's location: Co Durham, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 10 Jan 2025
