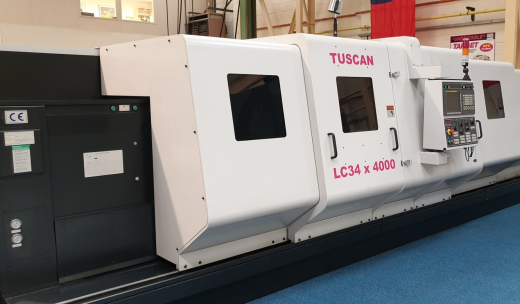

L&L Tuscan LC34 x 4000mm CNC Flatbed Lathe. (Unused)

Photo 1

Photo 2

Photo 3

Photo 4

TUSCAN LC34 x 4000mm Between Centres CNC Flat Bed Lathe with Fanuc 0i-TD Control. Year 2016 (Unused).
Swing over bed 870mm. Swing over cross slide 500mm. Centre height 440mm.Distance between centres 4150mm. Spindle bore 230mm. Spindle nose A2-15. Spindle centre MT#6. X axis feed 0.1mm/min-3000mm/min. Z axis feed 0.1mm/min-3000mm/min. Bed width 560mm. Hydraulic Tailstock. Tailstock centre MT#6. Tailstock quill travel 200mm.Tailstock quill diameter 165mm. Fanuc 0i- TD control with 10.4” colour screen & built in Manual guide i with 3D graphics function. Fanuc 3kw X-axis servo motor. Fanuc 4kw Z-axis servo motor. Spindle motor 30/37kw. H4 250 VDI turret with tool holders. Rotating tailstock quill diameter 165mm. Electric & handwheel quill movement. 3 point steady 30-300mm dia. 3 point steady 255-455mm dia. Travelling steady. Boring bar support – dia 153mm.Boring bar – length 1200mm. Fully Enclosed guarding. Front & rear swarf conveyors. 2 x swarf bins. Auto lubrication system. Coolant system. Air conditioner for electrical cabinet. Halogen lights. Toolbox & tools. Spindle sleeve, spindle centre, tailstock centre. Anchor bolts, levelling pads, levelling bolts. Transformer. 32” dia. 4 jaw chuck. Oil skimmer. Operation, electrics & control manuals & parts list. ISO 9001 & CE certified. Machine Unused.

Category: Lathes - CNC

Seller's location: Lancs, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 1 Oct 2021
