Webster Bennett 120 inch DCH Double Column Vertical Boring Machine DCM 120

Photo 1

Photo 2

Photo 3

Photo 4

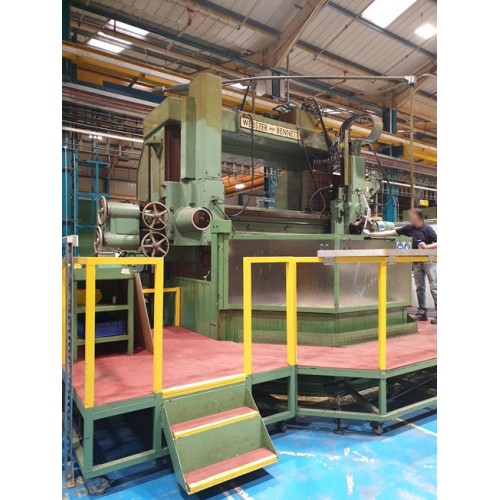

WEBSTER & BENNETT DCH 120  Double Column Vertical Turning and Boring Machine Type 120", Type DCH, serial number 5971-1R, 108" dia faceplate type table with Timken Cross Roller table bearing. Swing 122"(3100mm). Max Height Under cross rail 78", (1981mm). Table Load 25tons. Ram Slide 48"(1220mm) vertical travel. Turret Slide 38" (965mm). Table speeds 1.5 to 39.5rpm. Please note by changing the belt on the pulley, it is possible to double the table speeds.   Feeds .05 to 2.5 mm/rev. With Power indexing turret Newall DP700 2 axis DRO. Pendant control. Hardened slides all round. Interlocked table guarding. New 1969. pendant fitted to right hand side.

[Ref: 251]



Category: Boring

Seller's location: Lancashire, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 16 Apr 2024
