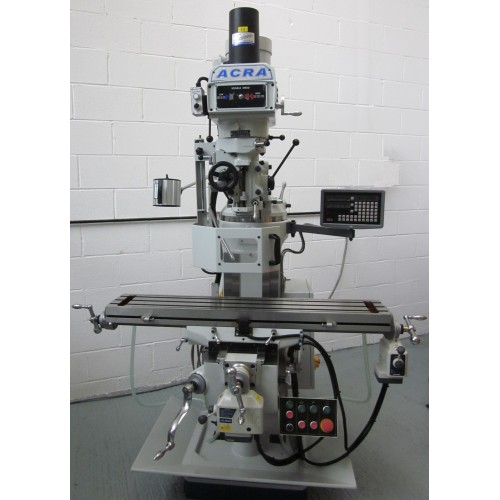

Acra FM-2V Turret Milling Machine FM-2V

Photo 1

Photo 2

Photo 3

Photo 4

Acra FM-2V Turret Milling Machine Specification3 Axes DROPower Air Draw BarPower FeedsTable - 230 x 1244mmLongitudinal Travel - 750mmCross Travel - 305mmVertical Travel (Knee) - 305mmTable T Slots (3) 16mmMax Workpiece Weight 340kgVertical Spindle Motor 3HPSpindle Speeds 50Hz 50-3750rpmSpindle Taper - R8Spindle Nose To Table - 42-469mmQuill Travel 127mmAutomatic Vertical Feeds (Per Revolution) - 0.04, 0.08, 0.14mmHead Swivel - (Left & Right) 90deg, (Front to Back) 45degWeight 1080kgs (Approx)Floor Space (LxHxW) 2197 x 2600 x 2000mmSound Pressure Level - below 80dB Standard Feartures Auto Lubrication systemInterlocked Chuck GuardPowered Feeds x and YLo Vo LampTools, Toolbox And Operation ManualPrecision Hardened & Chrome Plated QuillHardened And Ground Column Slide WaysBuilt In Coolant Tank In base Of Machine

[Ref: 56]



Category: Milling

Seller's location: Lancashire, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 16 Apr 2024
