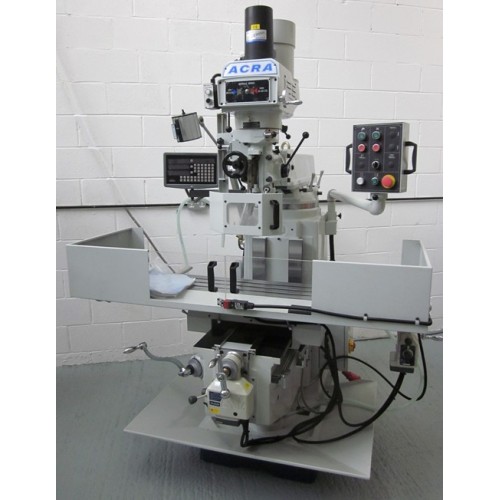

Acra FM-5V Turret Milling Machine FM-5V

Photo 1

Photo 2

Photo 3

Photo 4

Acra FM-5V Turret Mill 3 Axes DRO, Power Air Draw Bar, Power Feeds.Pendant ControlTable - 315 x 1470mmSquare WaysLongitudinal Travel - 890mmCross Travel - 390mmVertical Travel (Knee) - 430mmTable T Slots (3) 16mmMax Workpiece Weight 450kgVertical Spindle Motor 5HPSpindle Speeds 50Hz 50-3300rpm and 60Hz 60-4000RPMSpindle Taper - NST 40Spindle Nose To Table - 60-530mmSpindle Center Line To Column Surface 15-670mmQuill Travel 127mmAutomatic Vertical Feeds (Per Revolution) - 0.04, 0.08, 0.14mmHead Swivel - (Left & Right) 90deg, (Front to Back) 0deg or 45degElevating Rapid Travel 50Hz 1100mm/min - 60Hz 1300mm-minOverarm Travel 475mmOverarm Swivel 360degWeight 1800kgs (Approx)Floor Space (LxHxW) 2772 x 2400 x 2375mm

[Ref: 57]



Category: Milling

Seller's location: Lancashire, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 16 Apr 2024
