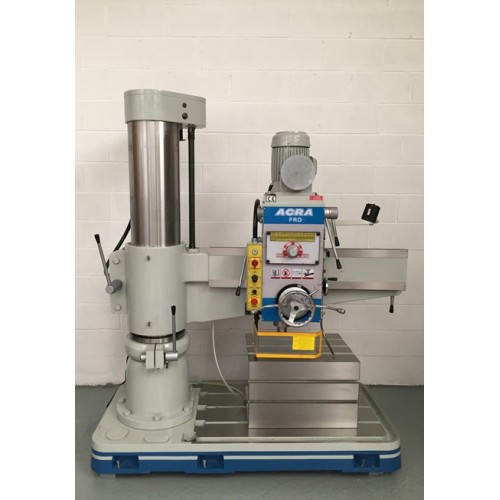

ACRA FRD 1280H Radial Arm Drill FRD 1280

Photo 1

Photo 2

Photo 3

Photo 4

Our ACRA Radial Arm Drills offer premium build quality with features including power spindle feeds, coolant systems and safety features to enhance productivity.Heavy-duty construction & compact in design, the radial drilling machine is the most versatile type of Drill there is.SPECIFICATION1280H1300H1700HDrilling Capacity – SteelDrilling Capacity – Cast IronTapping Capacity – SteelTapping Capaicty – Cast IronSpindle StrokeSpindle TaperSpindle SpeedSpindle FeedsColumn DiameterMax Dist Spindle To ColumnMin Dist Spindle To ColumnMax Dist Base To SpindleMin Dist Base To SpindleHorizontal Headstock TravelSpindle Drive MotorArm Elevation MotorCoolant Pump MotorHydraulic Pump MotorNet WeightLengthWidthHeight50.8mm60.32mm25.4mm31.75mm250.8mmMT 444~1500rpm0.02-0.06ipr301.6mm1244.6mm330.2mm1231.9mm536.5mm914.4mm3 HP2 HP1/8 HP1 HP2049 Kgs2286mm990mm2235mm53.9mm63.5mm25.4mm31.75mm250.8mmMT 444-1500rpm0.02-0.06ipr301.6mm1409.7mm552.451231.4mm546.5mm914.4mm5 HP2 HP1/8HP1 HP2400 Kgs2286mm990mm2235mm55mm66mm50mm60mm250.8mmMT 530-1500rpm0.05-.3.06ipr336mm1700mm400mm1420mm546mm1310mm7.5 HP2 HP1/8 HP1 HP3150 Kgs2850mm1210mm2540mmSPECIFICATION750S900S1100SDrilling Capacity – SteelDrilling Capacity – Cast IronTapping Capacity – SteelTapping Capaicty – Cast IronSpindle StrokeSpindle TaperSpindle SpeedSpindle FeedsColumn DiameterMax Dist Spindle To ColumnMin Dist Spindle To ColumnMax Dist Base To SpindleMin Dist Base To SpindleHorizontal Headstock TravelSpindle Drive MotorArm Elevation MotorCoolant Pump MotorHydraulic Pump MotorNet WeightLengthWidthHeight38mm50mm25mm30mm200mmMT 488-1500rpm0.02-0.06ipr210mm775mm290mm1110m282mm500m2 HP1 HP1/8HPN/A1100 Kgs1430mm820mm2060mmn/a50.8mm25mm25.4mm200mmMT 488-1500rpm0.02-0.06ipr209.55919.1mm301.6mm1111.2mm282mm614.3mm2 HP1 HP1/8 HPN/A1170 Kgs1574.8mm812.8mm2057mm50.8mm60.32mm25.4mm31.75mm250.8mmMT 444~1500rpm0.02-0.06ipr1244.6mm1143mm330.2mm1231.9mm330.2mm812mm3 HP2 HP1/8 HP1 HP2000 KGS2000mm990mm2235mm1700mm Arm length,5 HP Motor, 5MT Spindle, Box Table, Coolant, Safety Brake.Included as Standard;Coolant SystemLovo Machine LampTee Slotted Box TableInterlocked Spindle GuardDC Injection Brake, rapid stop for the spindle.

[Ref: 59]



Category: Drilling

Seller's location: Lancashire, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 16 Apr 2024
