Union Graduate Wood Turning Lathe 30" 3 phase - A80818.02

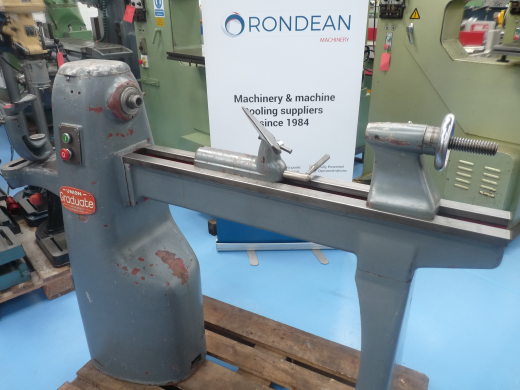

Photo 1

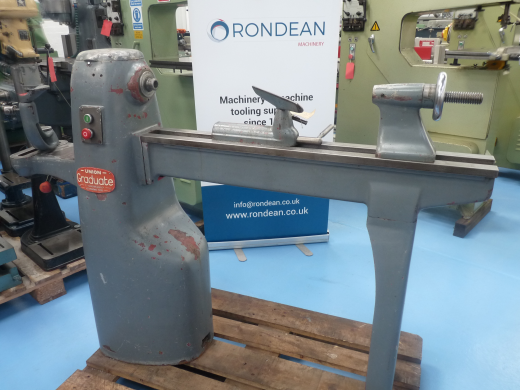

Photo 2

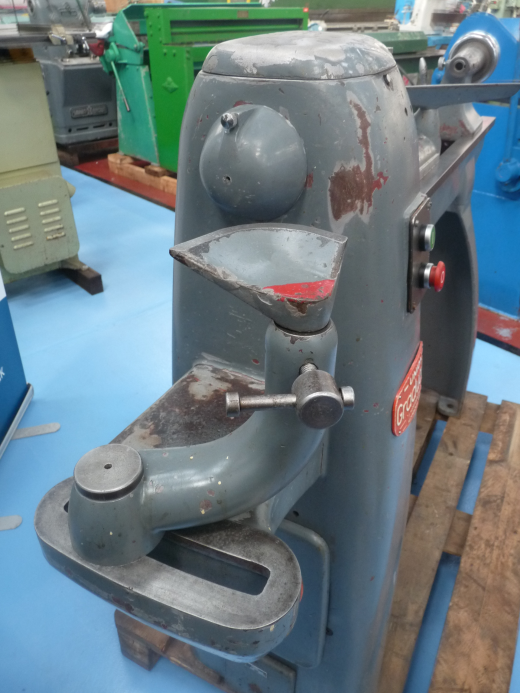

Photo 3

Photo 4

For latest offer please call on 0191 410 5886

Manufacturer
Union

Model:
Graduate Wood Turning Lathe
Bowl Turning and Sanding Lathe

Between centres:
30" (750mm)

Swing over bed:
12" (300mm)

Centre Height:
6" (152mm)

Height of base to centre line:
40" (1016mm)

Spindle Thread:
1 1/2" x 6 TPI

Spindle:
3 Morse Taper

Spindle Bore:
25/32" (20mm)

Tailstock Taper:
3 Morse

Equipment:
Tool Rest
Outboard Tool Rest
14" Diameter Outboard Face Plate

Capacity with outer face plate:
6" wide at 18" diameter
12" wide at 14" diameter

Speeds:
4: 425, 790, 1330 & 2250rpm

Power:
3/4 horse power 0.55 kW
Three Phase Electrics

Approx Dimensions:
1550 x 400 x 1150mm high

Approx Weight:
225kg

Category: Woodworking

Seller's location: Co Durham, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 14 May 2025
