CNC Punching/Drilling/Thermal Cutting Machine. 7500 Kgs Max. Weight. Hypertherm HT2000 Power Supply. Faro Hydraulic Power Pack. Cleatd Belt Swarf Conveyor. 4 x Gravity Roller Conveyors 2.7m approx wide. Serial No. 27230. Manufactured 2003

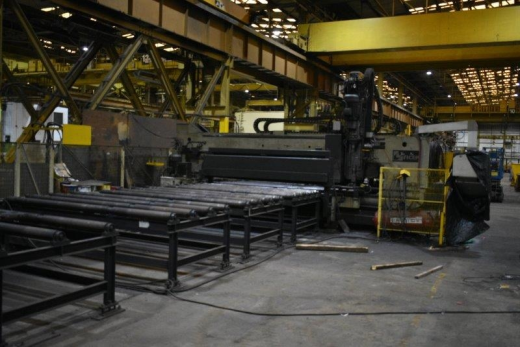

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Manufacturer: FICEP
Model: Tipo B 25
Serial No.: 27230
Year of Manufacture: 2003
Specifications of plate to be Processed: Entry side
Length: max, 8000m, min 2500mm
Width: max, 2500mm, min, 200mm
Specifications of Processed Piece: Exit side
Minimum length: 200mm
Minimum Width: 150mm
Positioning Weight: Max, 7500 kg
Plate Thickness Min,: 6mm
Plate Thickness, Punching: Max, 25mm
Plate Thickness, Drilling: 30mm
Longitudinal plate positioning speed: Max, 30 m/min
Working Height: 850mm
: PUNCHING UNIT
Max, Punching Force: 1100 kN
Number of Independant Punches: 8
Max, Punching Diameter: 46mm
: DRILLING UNIT
Vertical Drilling Head: 1
Spindle Taper: ISO 45
Max, Drilling Capacity : 30mm
Spindle Speeds: 20 - 2480 rpm
Spindle motor : 11 kW
Tool Change: 8 Station
: PLASMA CUTTING UNIT
Max, Cutting Thickness: 25mm
Cutting Unit Type: Hypertherm HT 2000
Generator Capacity: 200 Ampere
Fitted with: 1 x Oxy fuel cutting head
Conveyor: MARKING UNIT
Number of Characters: 36
Number/letter size: 11mm x 6mm
Marking Capacity: 80 kN
Positioning Stroke: 20mm - 2480mm
Carriage X Axis: 0 - 8000mm
Punching Unit Y Aixs: +20 - +2480mm
X Axis: 30m/min
Y Axis : 10m/min
Input: 415/3/50hz
Control: Ariana 5 axis CNC simultaneous control
Equipment: Swarf conveyor, Coolant, 12 metres infeed tracking with CNC carriage, 4 metres outfeed tracking
Nett weight approx.: 24,000 kgs main machine
[Ref: J34173]



Category: Drilling

Seller's location: Leicestershire, UK
