Vertical Machining Centre. X = 3000mm, Y = 800mm, Z = 720mm. 5 Axis Mazatrol Matrix 2 Control. 18000 rpm. Hive 155 tools. Manufactured 2014. Weight approx 18 tons

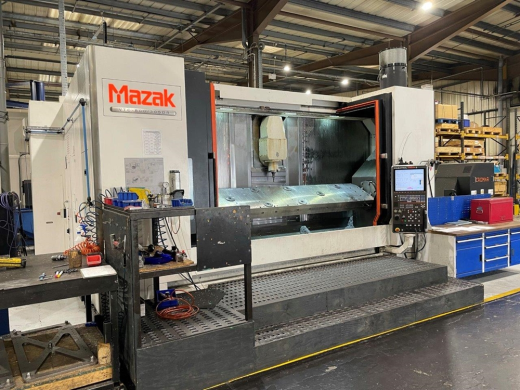

Photo 1

Photo 2

Photo 3

Photo 4

Manufacturer: MAZAK
Model: VTC 800/30SDR
Serial No.: 251093
Year of Manufacture: 2014
Control: Mazatrol Matrix 2
Table size: 3500mm x 820mm
Table load: 2500 kg
X Axis traverse: 3000mm
Y Axis traverse: 800mm
Z Axis traverse: 720mm
B Axis : +/- 110 degrees
C Axis : 360 degrees
Max, Spindle Speeds: 18,00 rpm
Spindle motor: 35 kW
Rapid feed rate: X / Y / Z axis 50 m/min. B axis 50 rpm. C axis 25 rpm
Spindle nose to table: 140mm - 860mm
Spindle taper: ISO 40
Automatic tool changer: Yes
Number of tools: 155
Tool length: 350mm
Tool diameter: 130mm
Tool weight: 8 kg
Input: 415/3/50hz
Fitted with: High pressure coolant,
Equipment: 155 tool hive, Swarf conveyor,Hand wheel, Suds tank, Oil chiller.
Length: 6400mm
Width: 4750mm
Height: 350mm
Nett weight approx.: 16,100 kg
[Ref: J34182]



Category: Machining centres

Seller's location: Leicestershire, UK
