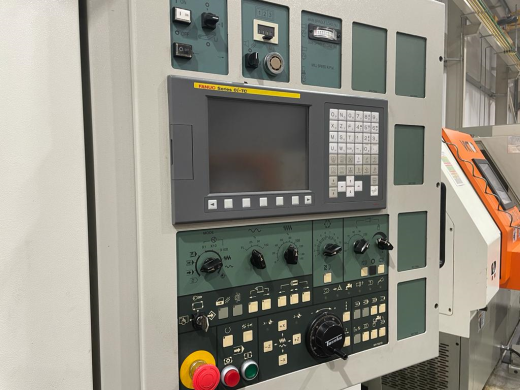

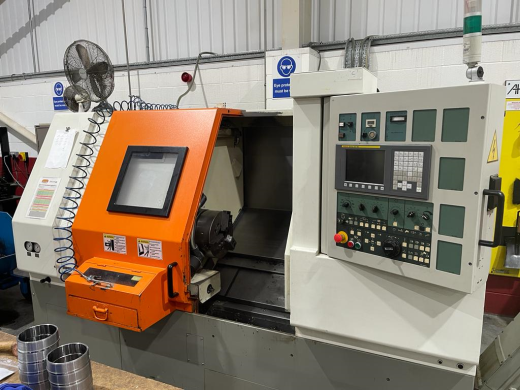

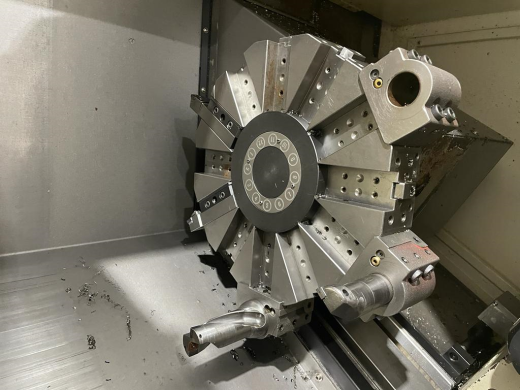

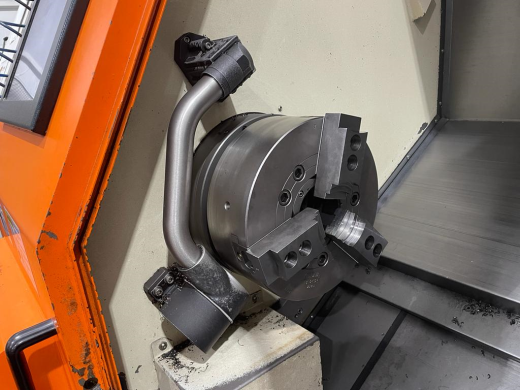

Swing over bed 670mm. Swing over carriage 486mm. Standard turning dia. 290mm. Maximum turning dia. 370mm. Distance between centres 620mm. Maximum X travel 185mm + 50mm. Maximum Z travel 610mm. Rapids X/Z 20/24m/min. Maximum spindle speed 3500 rpm. Spindle nose A2-8. Spindle bore 86mm. Main motor 15/18.5 kW. 12 station turret. Tailstock quill dia. 85 mm. Quill stroke 120mm. Quill taper 5 MT. High Pressure Coolant. Coolant capacity 160 litres. Machine fitted with Kitagawa B212 Powered Chuck (12? dia). Fanuc 0i-TC Control. Tool setter. Oil skimmerDimensions L x W x H 2800mm x 1780mm x 1853mm. Approximate weight 5800 kgs Category: Lathes - CNC Seller's location: Lancs, UK To see the seller's contact details please use the contact form below. The seller confirmed the item was still for sale on: 11 Jan 2022
