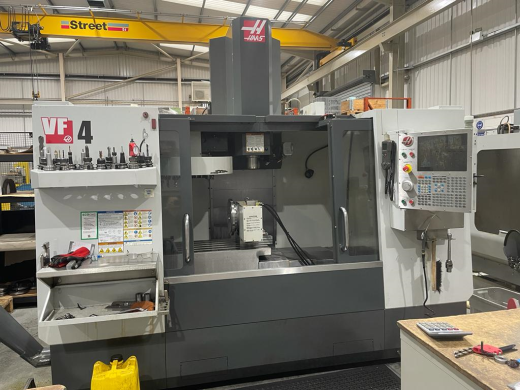

HAAS VF4 Vertical Machining Centre with 4th Axis Attachment. Year 2010

Photo 1

Photo 2

Photo 3

Photo 4

Table size 1321mm x 457mm. X/Y/Z travels 1270mm/508mm/635mm. Maximum spindle nose to table 737mm. Minimum spindle nose to table 102mm. Max weight on table (evenly distributed) 1588 kg. Spindle motor 22.4kW. Spindle speeds to 8100 rpm. (Direct Drive). Rapids X/Y/Z 25.4m/min. Spindle taper BT40. Max Tool dia (adjacent position empty) 152mm. Maximum tool dia. with full carousel 89mm. Max tool length 406mm. Max tool weight 5.4kg. 20 ATC. Tool to tool change time (average) 4.2 seconds. Chip to chip time (average) 4.5 seconds. Coolant capacity 208 Litres. Air requirement 4 scfm, 100 psi, 113 l/min 6.9 bar.

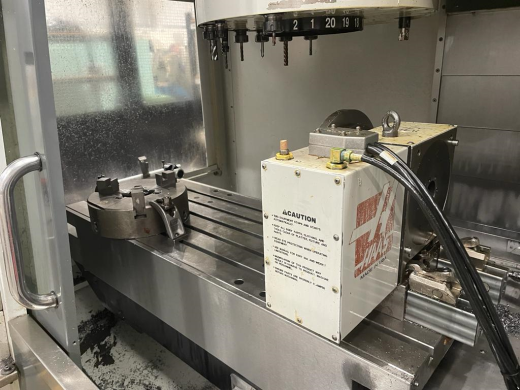

Optional equipment includes 4th Axis interface. 4th Axis Attachment. Intuitive Programming Systems. Macros. Rigid tapping. Through Spindle Coolant. Compensation tables. M19 Spindle Orientation. Rotation & Scaling (probing).

Dimensions L x W x H 3832mm x 2640mm x 3108mm. Approximate weight 6033kg

Category: Milling - CNC 4th Axis

Seller's location: Lancs, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 11 Jan 2022
