HAAS Super Mini Mill 2 Vertical Machining Centre with Haas Control. Year 2018

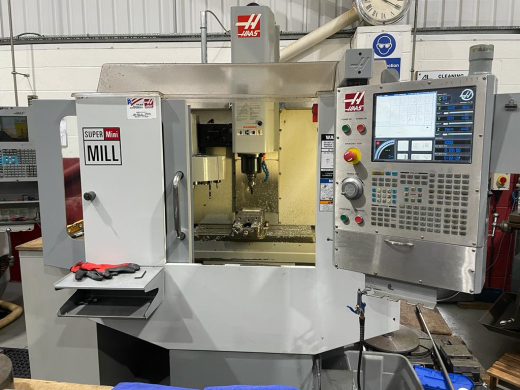

Photo 1

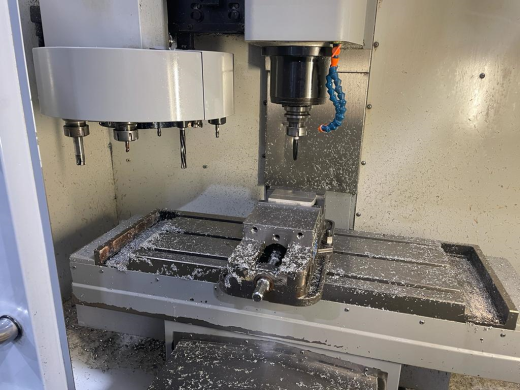

Photo 2

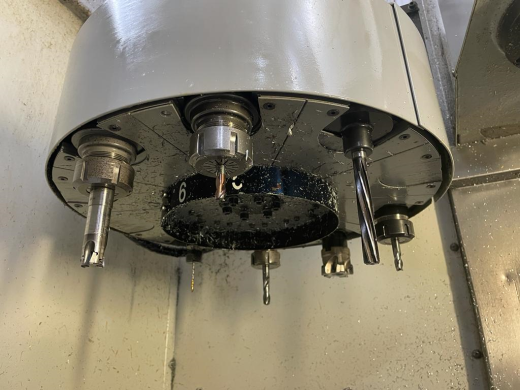

Photo 3

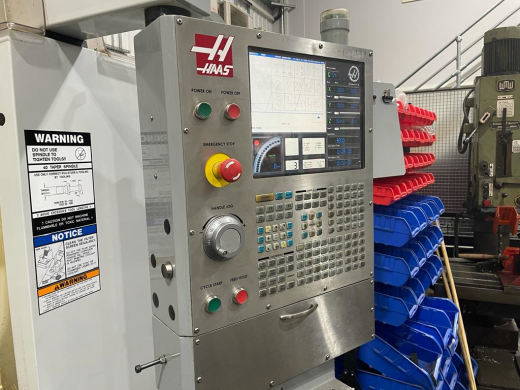

Photo 4

Table Size 1016 x 356 mm. T-Slot Width 15.90 mm to 16.00 mm. T Slot Centre Distance 125 mm. Max Weight on Table (evenly distributed) 227 Kg. Travels X/Y/Z 508/406/356mm. Spindle Nose to Table (~ max) 457mm. Spindle Nose to Table (~ min) 102mm. Spindle Max Rating 11.2 kW. Spindle Speed 10000 rpm. Max Torque 23.0 Nm @ 4600 rpm. Direct Speed, Belt Drive. Taper BT40. Carousel Type Toolchanger Capacity 20. Coolant Capacity 151 L. Max Tool Diameter (full) 89mm.
OPTIONS
Compensation Tables. Machine Unlock. Max Spindle Speed. Media. Rigid Tapping.
Cutting Hours 742

Category: Milling - NC/CNC

Seller's location: Lancs, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 11 Jan 2022
