XYZ 1060HS 3 + 1 Axis Vertical Machining Centre #78558

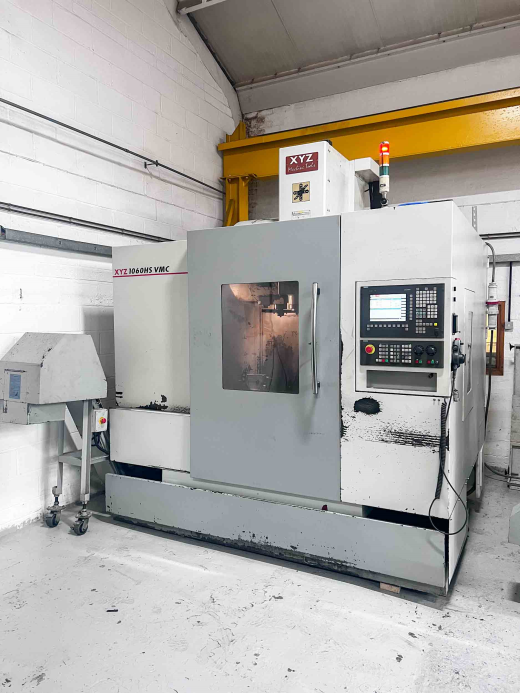

Photo 1

Photo 2

Photo 3

Photo 4

XYZ 1060HS 3 + 1 Axis Vertical Machining Centre
Siemens 840D Shop Mill Control
Table Size 1200 x 800mm
X Travel 1020mm
Y Travel 610mm
Z Travel 620mm
Linear way THK roller (not ball)
Spindle centre to column 670mm
Spindle to table 140 – 760mm
Column front to table centre 365 – 975mm
Rapid feed XYZ axis 43 M / min
Cutting feed rates 1 – 10000 mm / min
Max table load 800 Kg
Spindle speed 150 – 12000 rpm
Spindle Motor Maximum Rating: 16Kw
Spindle Motor Duty Cycle: 12Kw
Spindle Taper BT 40
Tool magazine capacity 24 Station Arm Type
Tool change time tool to tool 2.5 secs
Tool change time chip to chip 3.5 secs
Max tool diameter 100mm
Max tool weight 8Kg
Coolant capacity 280 L
Machine weight 7200 Kg
Footprint W x D x H 2650 x 2750 x 2900
Machines built from solid cast iron
Pneumatically counter balanced head
Coolant washdown
Swarf conveyor
Oversize digital servos
Rigid tapping
Remote electronic handwheel
High Pressure Through Spindle Coolant
Swarf Conveyor
YOM 2009

wwwjetmachinery.co.uk
Jet Machinery Stock Number: #78558
Machine Serial Number: SMK00024



Category: Milling - CNC 4th Axis

Seller's location: West Midlands, UK
