Ceratizit

VDF M1000 x 3500mm Deep Hole Borer

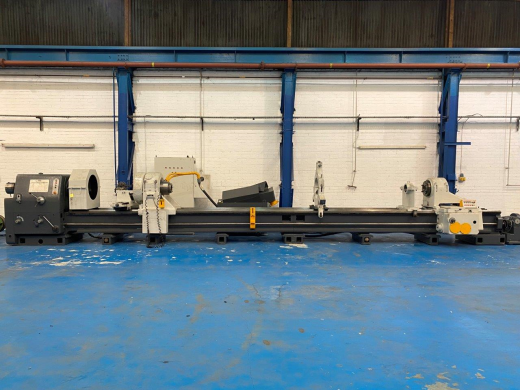

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

VDF M1000 x 3500mm Deep Hole Borer

Year 1963
Modernized Electrics
Centre Height 500mm
Swing over bed 1,000mm
Max length of bore in one pass in front of chuck 3500mm
Hollow spindle 165mm
Max length bored when using hollow spindle for dia under 165 is 6,000mm
Main motor 45kw with inverter drive
Headstock speeds 5.6 – 280 rpm driven through gears, 5.6-1120rpm belt driven
Static bar drive with inverter control
Rapid travel of sealing head saddle
Sealing head excepts up to 120mm dia boring tube.
Solid boring capacity 1” – 4.5”
2 x 3-point roller type work steadies with two sets of legs each
High pressure pump with inverter drive
Equipped with tooling, bushes, bars, collets, guides etc.

Category: Boring - deep hole

Seller's location: South Yorkshire, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 4 Apr 2022
