MG Welding

2005 Citizen Model M32 V

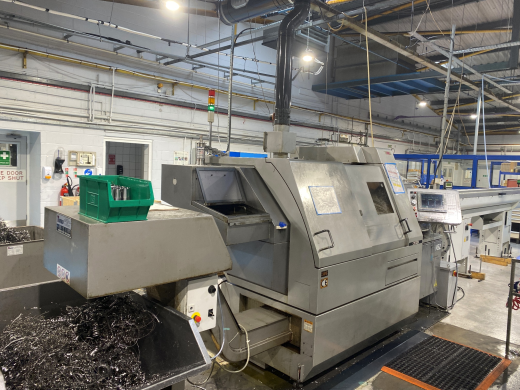

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Sliding Headstock Type Automatic CNC Lathe

Max. machining diameter (D) 32mm Dia.
Max. machining length (L) 320mm/1chucking
Max. front drilling diameter 12mm Dia.
Max. tapping diameter for the front spindle M12 (Cutting tap)
Main spindle speed Max8,000min-1
Max. chuck diameter for the back spindle 32mm Dia.
Max. drilling diameter for the back spindle 12mm Dia.
Max. tapping diameter for the back spindle M12 (Cutting tap)
Max. length of the back spindle workpiece 145mm (Standard recovery unit)
Back spindle speed Max.8,000min-1
Gang rotary tools Max. drilling diameter 8mm Dia.
Max. tapping diameter M8 (Cutting tap)
Main spindle speed Max.9,000min-1
Turret rotary tools Max. drilling diameter 12mm Dia.
Max. tapping diameter M12 (Cutting tap)
Main spindle speed Max.6,000min-1
Back rotary tools Max. drilling diameter 8mm Dia.
Max. tapping diameter M6 (Cutting tap)
Main spindle speed Max.6,000min-1
Number of tools Max. 25 to 27 +a
Turning tools 5
Cross drills 5 to 7 8(including 4 B-axis drills)
Number of turret stations 10
Back tool post drills 5
Tool size Turning tool 16mm Sq.
Sleeve diameter 25.4mm Dia.
Rapid feed rate X1,Y1,Z1,Z2,X3,Z3 32m/min
X2 18m/min
Y2 12m/min
Motors Front spindle drive 5.5/7.5kW
Back spindle drive 5.5/7.5kW
Gang rotary tool drive 2.2kW
Turret rotary tool drive 2.2kW
Back rotary tool drive 1.0kW
Pneumatic unit: Required pressure and required flowrate 0.5MPa at 110NL/min (When stationary)
Machine main unit dimensions W2,860 × D1,465 × H1,900mm
Weight 4,300kg
Rated power consumption 24kVA 25kVA
Load operation average power 13.1kVA
Full-load current 79A
Main breaker capacity 100A
Iemca Boss 332 E/R barfeed
Cool Blaster High Pressure System
Swarf Conveyor


Category: Lathes - CNC

Seller's location: Surrey, UK
